CFS Spool Adapter - 250g

The Creality CFS is built around 1 kg spools, so a 250 g sample spool sits loose and off-center in the bay and is prone to jamming. This is two printed halves that thread together through the small spool's own bore and carry it on a 200 mm flange — the diameter the CFS expects — so it rides centered and feeds like a full-size roll.

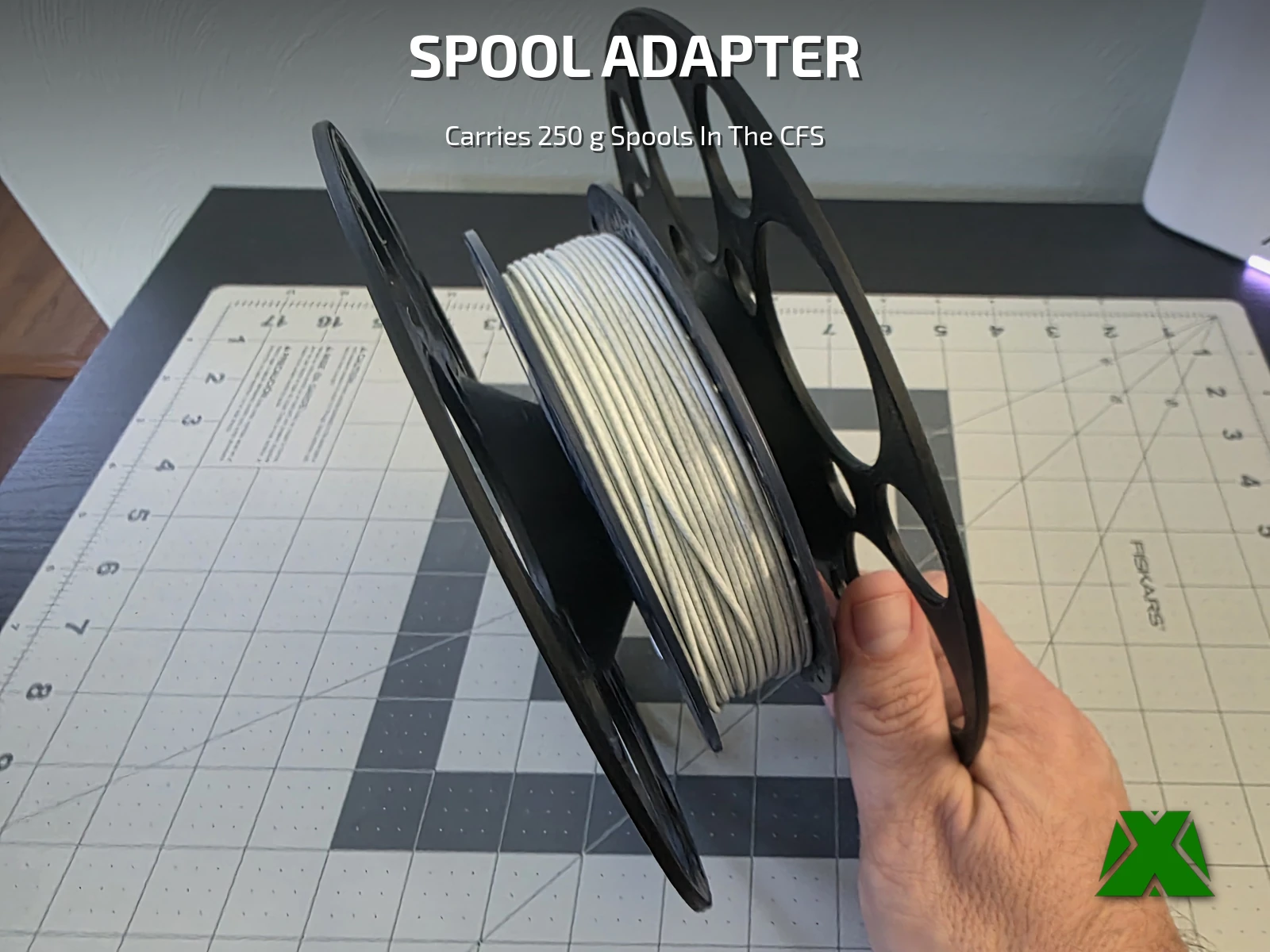

A hand holding the assembled adapter, a white 250 g spool captured between its two spoked flanges

Downloads

Get the Files

Two plates, one per half, and you need one of each per spool you want to run. There is a combined 3MF with both halves on it if you would rather print them in one go, and the STLs are in there for bringing your own profile.

★
Download from Creality Cloud — it makes a real difference.

Every download through Creality Cloud earns points that help keep my models free and my pages running. If you have an account, downloading from there is the best way to support the work at no cost to you.

Download on Creality Cloud

The 3MF is the faster path — open it, pick a plate, and slice. A full print & use guide is attached to the Creality listing.

▤
Print & Use Guide

The same guide attached to the model listings, hosted here so you can read it before you print — PDF · 4 pages · 1492 KB

Open the Guide

What's Included

Two Halves, One Spool

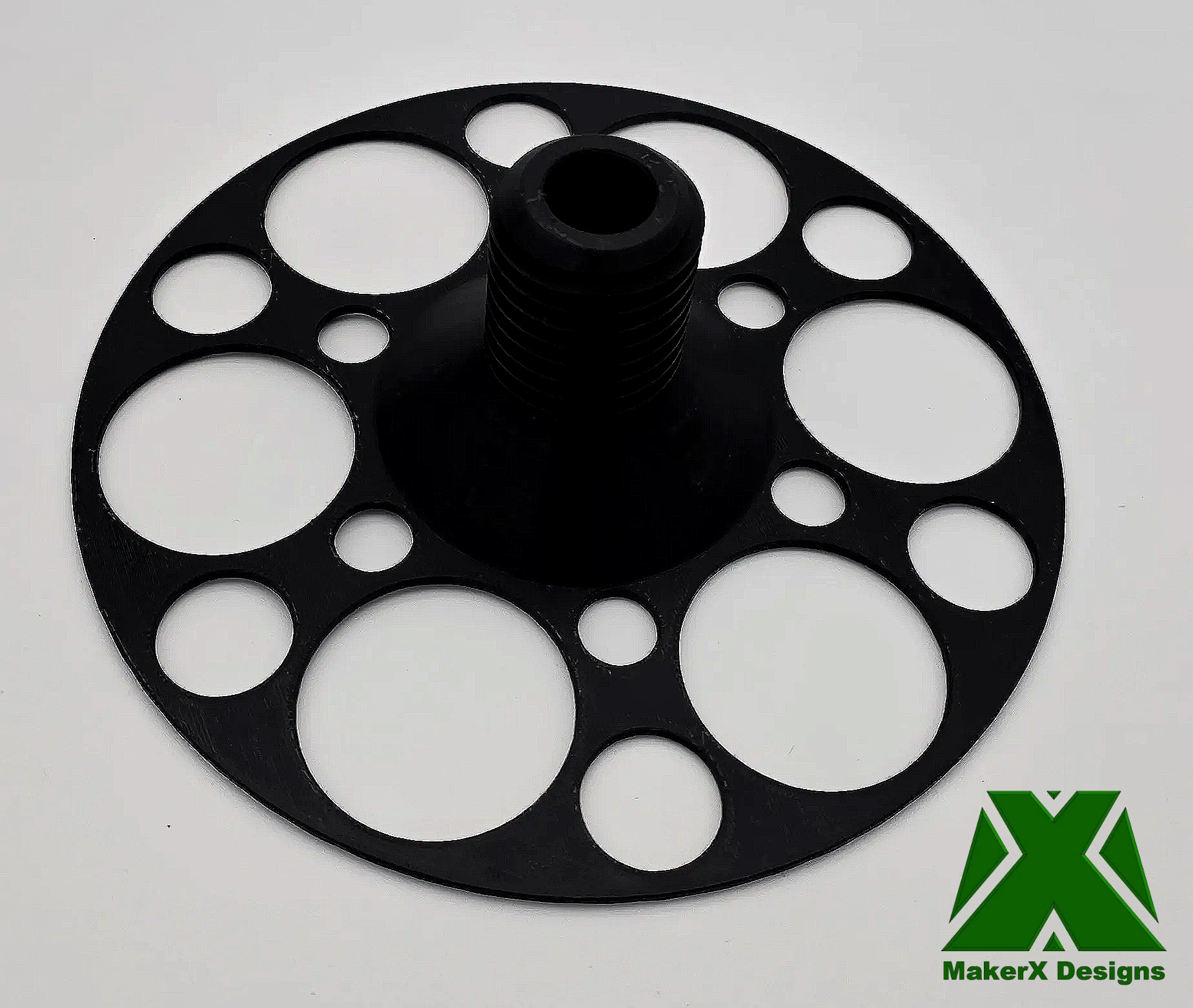

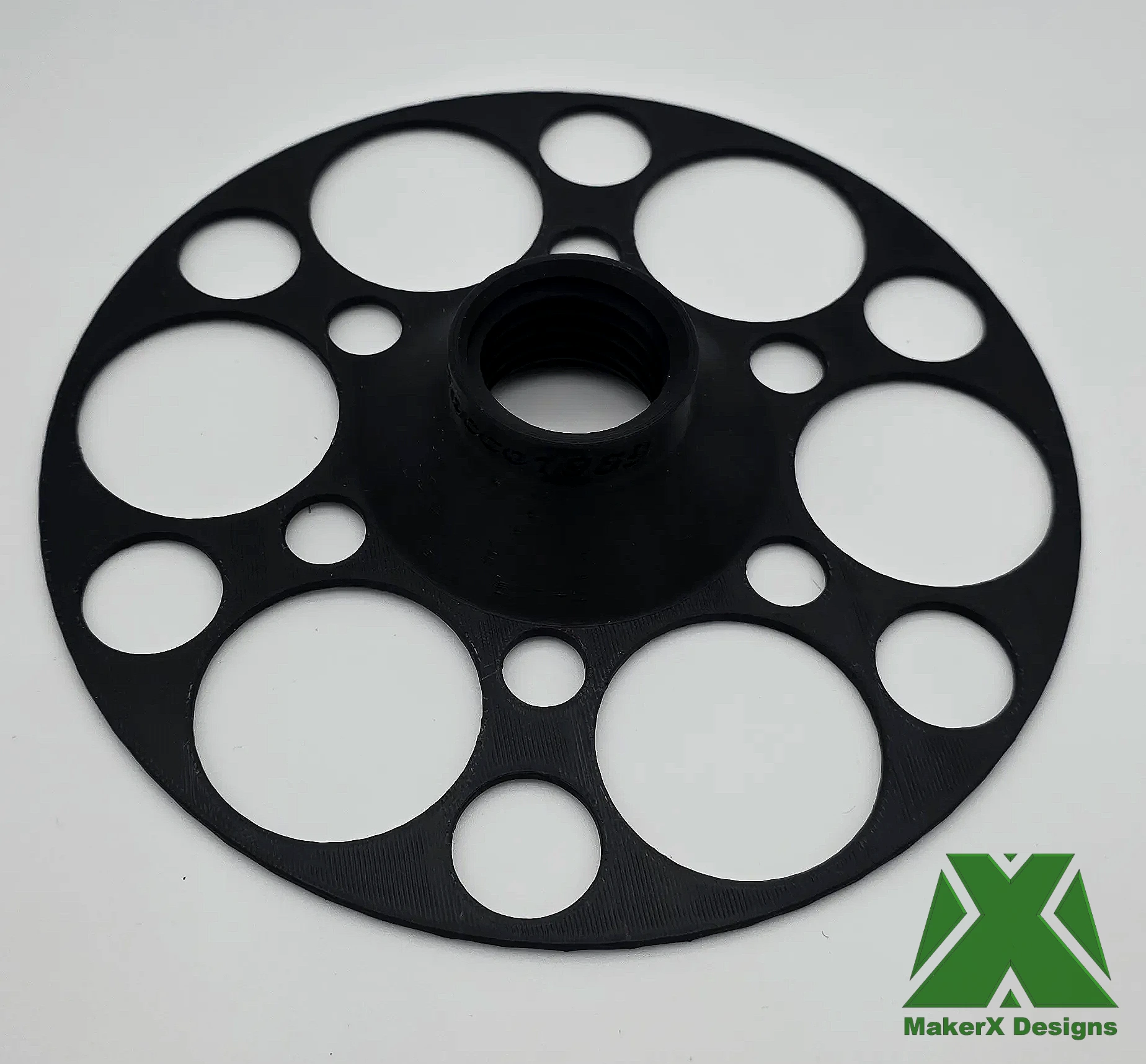

A nut half and a screw half. The screw half's hub passes up through the center of the 250 g spool, the nut half threads down onto it, and drawing the two together clamps the spool between them and centers it on the axis the CFS actually feeds from.

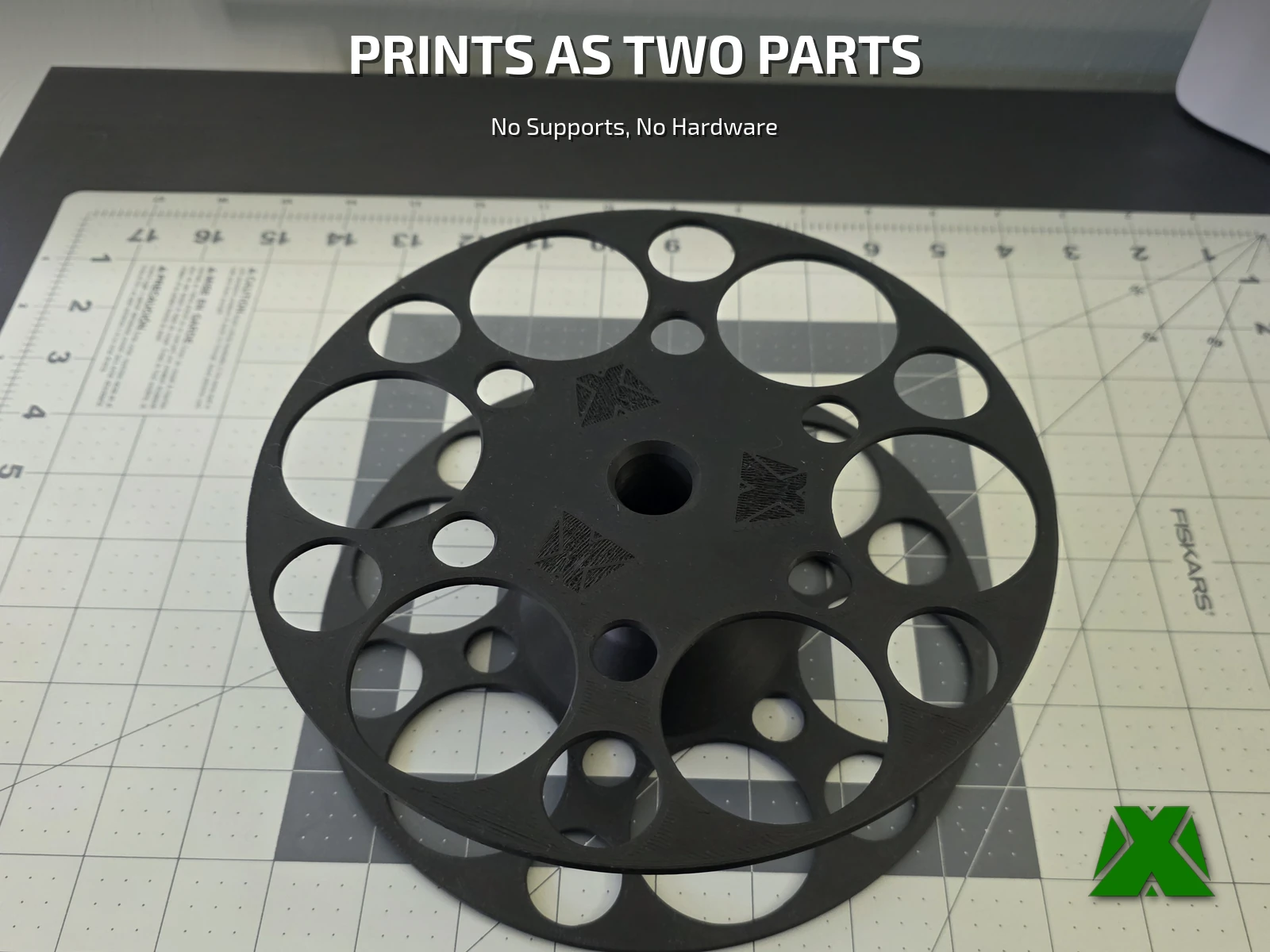

The assembled adapter lying face up on a cutting mat, its spoked flange and threaded center bore in view
Two Parts, No Hardware
The halves thread into each other, so there is nothing to buy and nothing to lose. No magnets, no screws, no inserts — print the two plates and that is the whole bill of materials.

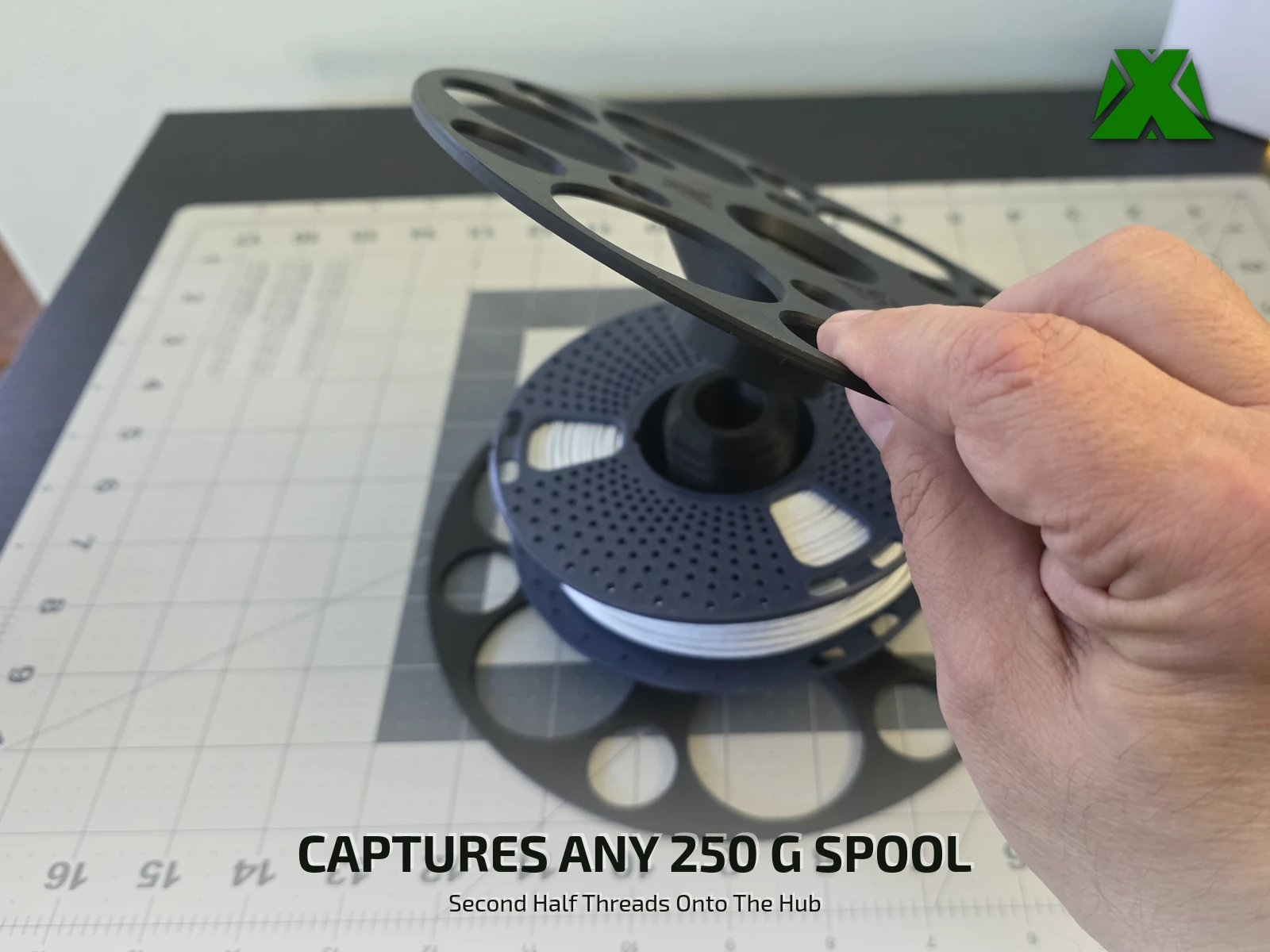

A hand lowering the second flange onto the threaded hub standing up through a navy 250 g spool
It Uses The Spool's Own Bore
The threaded hub is sized to pass through the middle of a 250 g spool, so nothing is clamped against the flanges and nothing has to grip the filament. Drop the spool on, thread the second half down, hand tight.

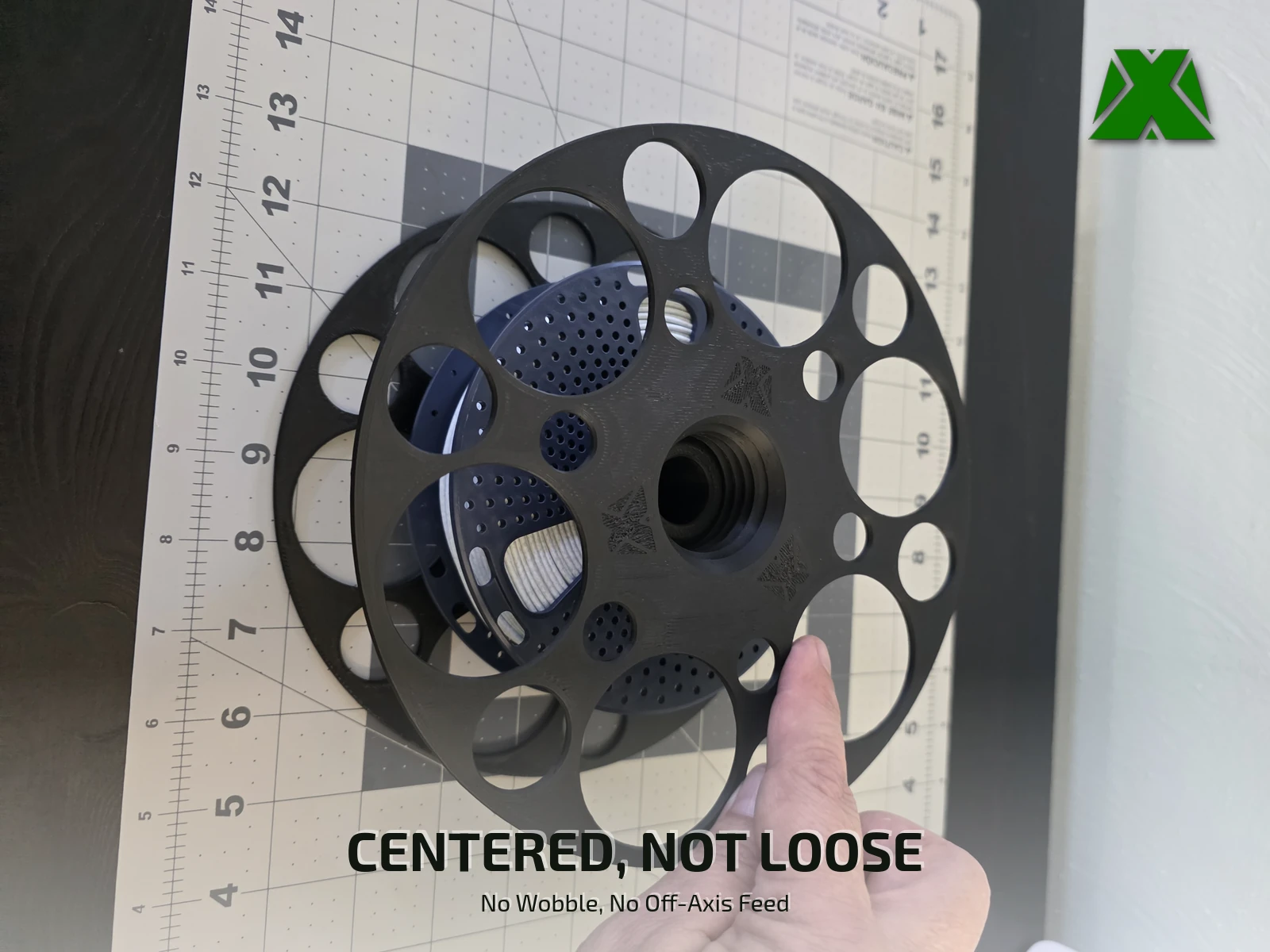

The adapter face on with a navy 250 g spool nested inside it, visible through the openings in the flange
Centered, Not Just Held
Both flanges are conical on their inner faces, so tightening them pulls the spool onto the center rather than wherever it happened to sit. That is what takes out the wobble and the off-axis feed that causes tangles mid-print.

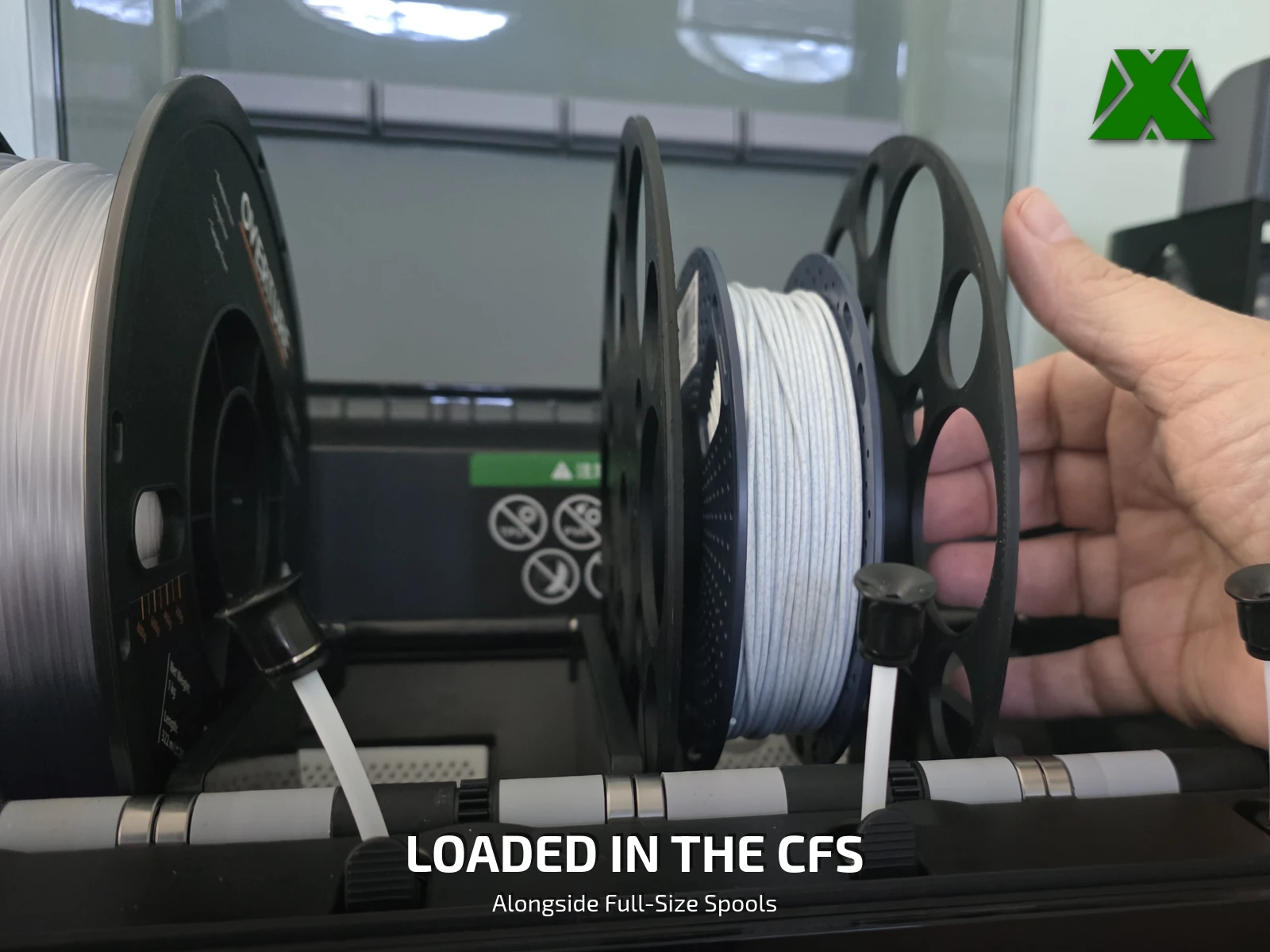

A small spool on the adapter loaded in the CFS beside two full-size spools, all three feeding into the tubes
200 mm Across, On Purpose
That is the outside diameter of a standard 1 kg spool — the size the CFS is built around. The adapter presents the machine with the geometry it expects, so the small spool loads into a bay alongside full-size ones and needs no change to the printer at all.

Print Settings

Slice It Right

These are the settings the reference prints were made with. The 3MF carries the full profile — open it in Creality Print or any slicer that reads 3MF projects and it is ready to go. Both halves run the same way: 0.10 mm layers, 3 walls, 10% gyroid, and no supports are generated anywhere despite all the spoking.

The two plates sum into one adapter. 52.07 g and 2 h 47 m for the nut half, 64.81 g and 3 h 51 m for the screw half — 116.88 g, 6 h 38 m and about $3.50 the pair. Printing several, print several of each; the halves are not interchangeable.

The layer height is the one setting worth checking. These are printed threads, and at 0.10 mm they come off the plate turning by hand. Coarsening the layers to save time is the change most likely to leave you filing a thread that used to fit.

Supports
None
Layer Height
0.10 mm
Walls
3
Top / Bottom
5 / 3
Infill
10% Gyroid
Material
PLA · 220 °C
Nut Half
Ø200×33mm · 2h 47m
Screw Half
Ø200×68mm · 3h 51m

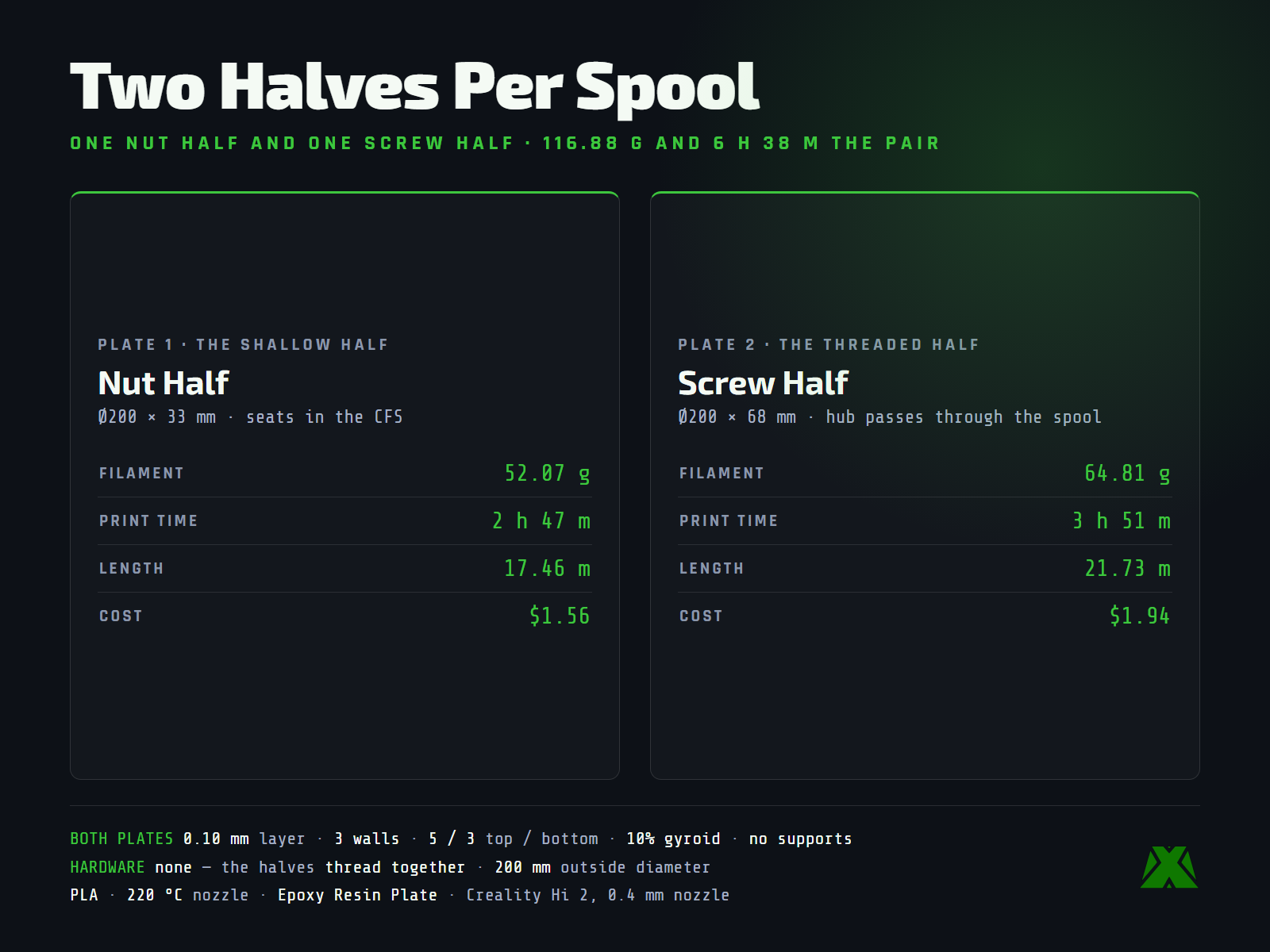

Slice data: the nut half is 52.07 g and 2 h 47 m, the screw half is 64.81 g and 3 h 51 m

More models and tested slicer settings on my Creality Cloud profile.

View Profile

Released under CC BY-NC-ND 4.0 — free for personal use, credit appreciated, no commercial use or derivatives.
