Free Model Download

Spool Desiccant Holder

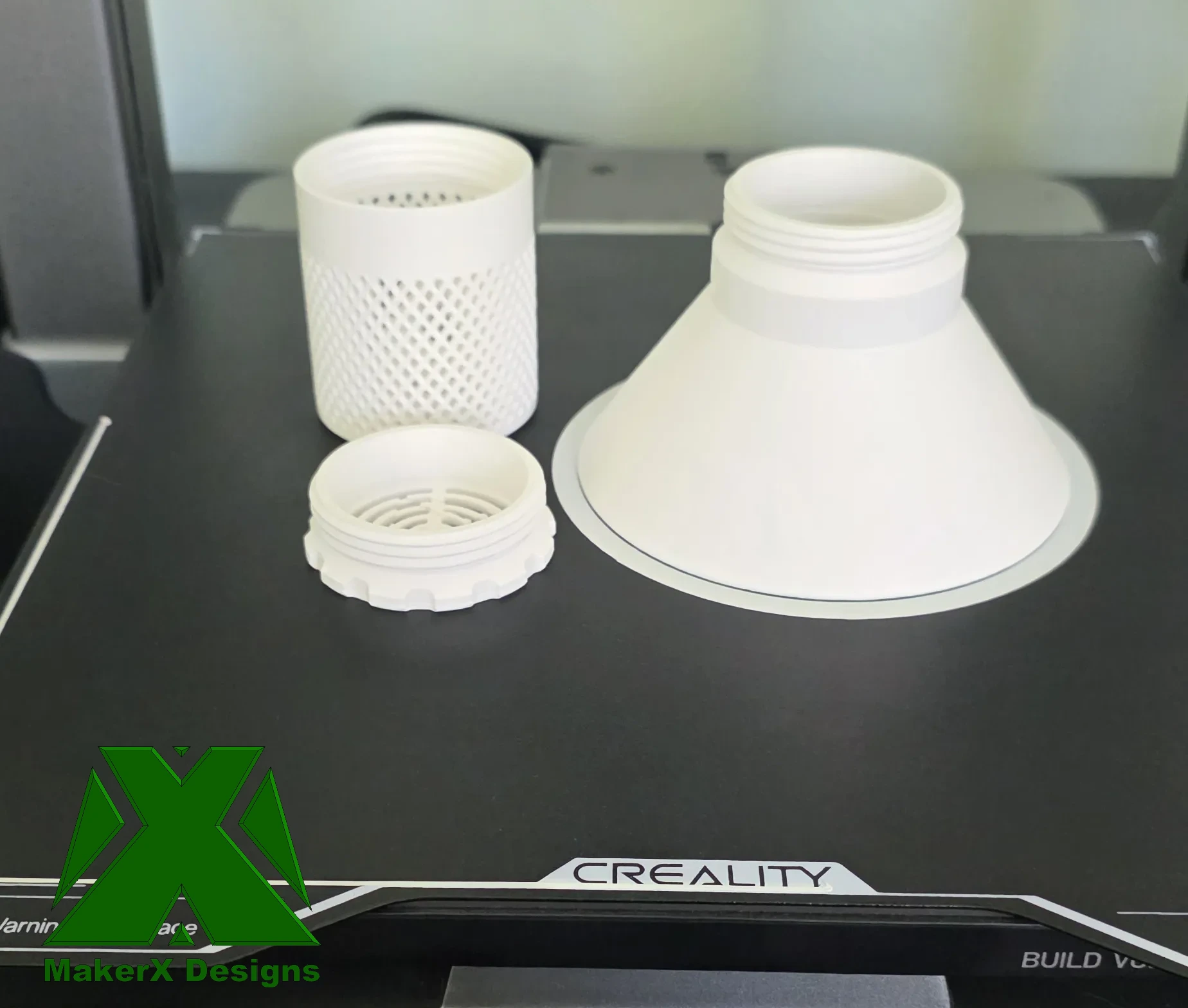

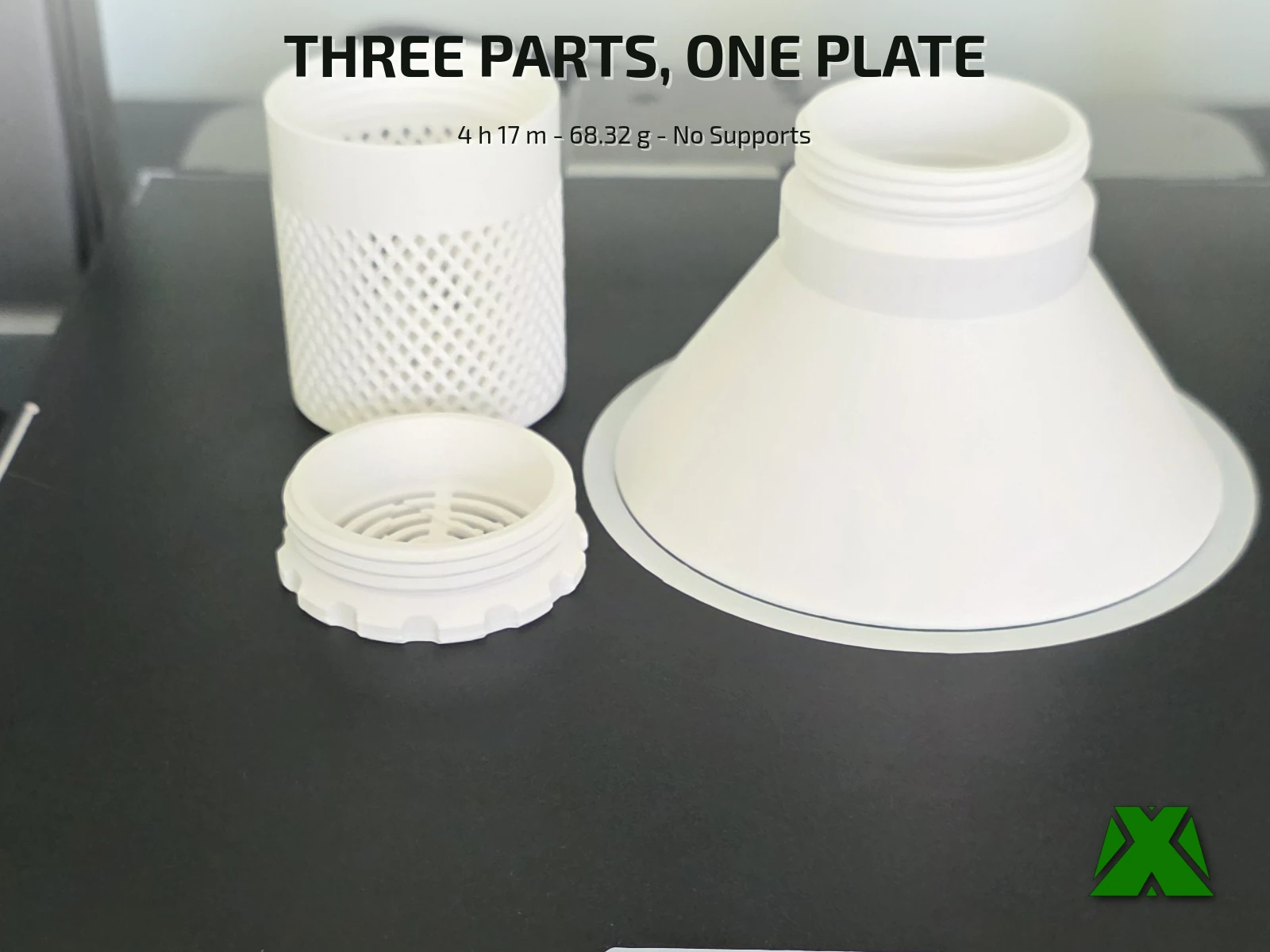

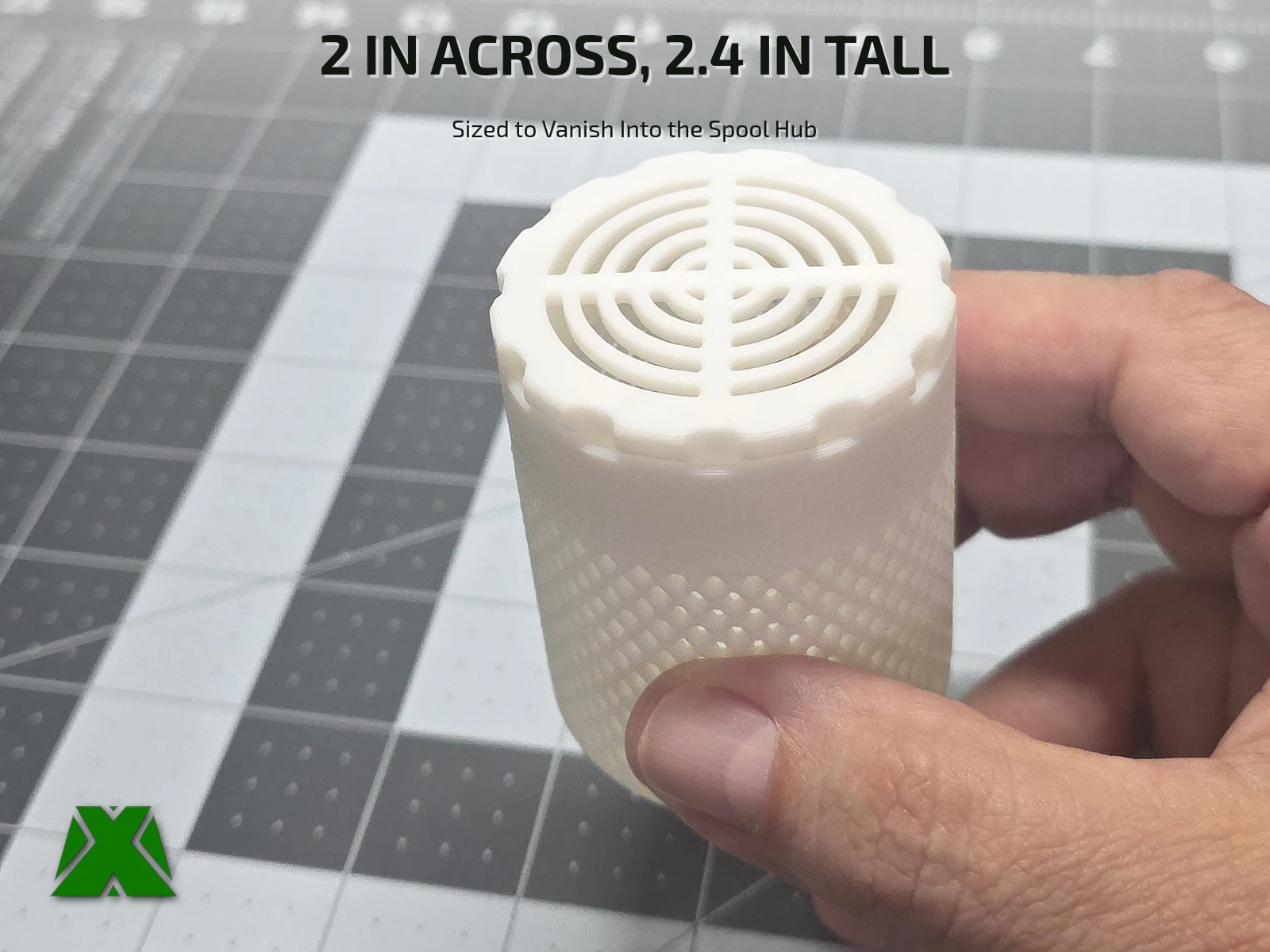

A slim desiccant container sized to disappear into the hub of a filament spool, so a bagged spool still lies flat and vacuum bags still stack. Two inches across and 2.4 inches tall, vented through the top and all the way down the sides, and it ships with a matching funnel so you can fill it without silica beads going everywhere. Three parts, one plate, no supports.

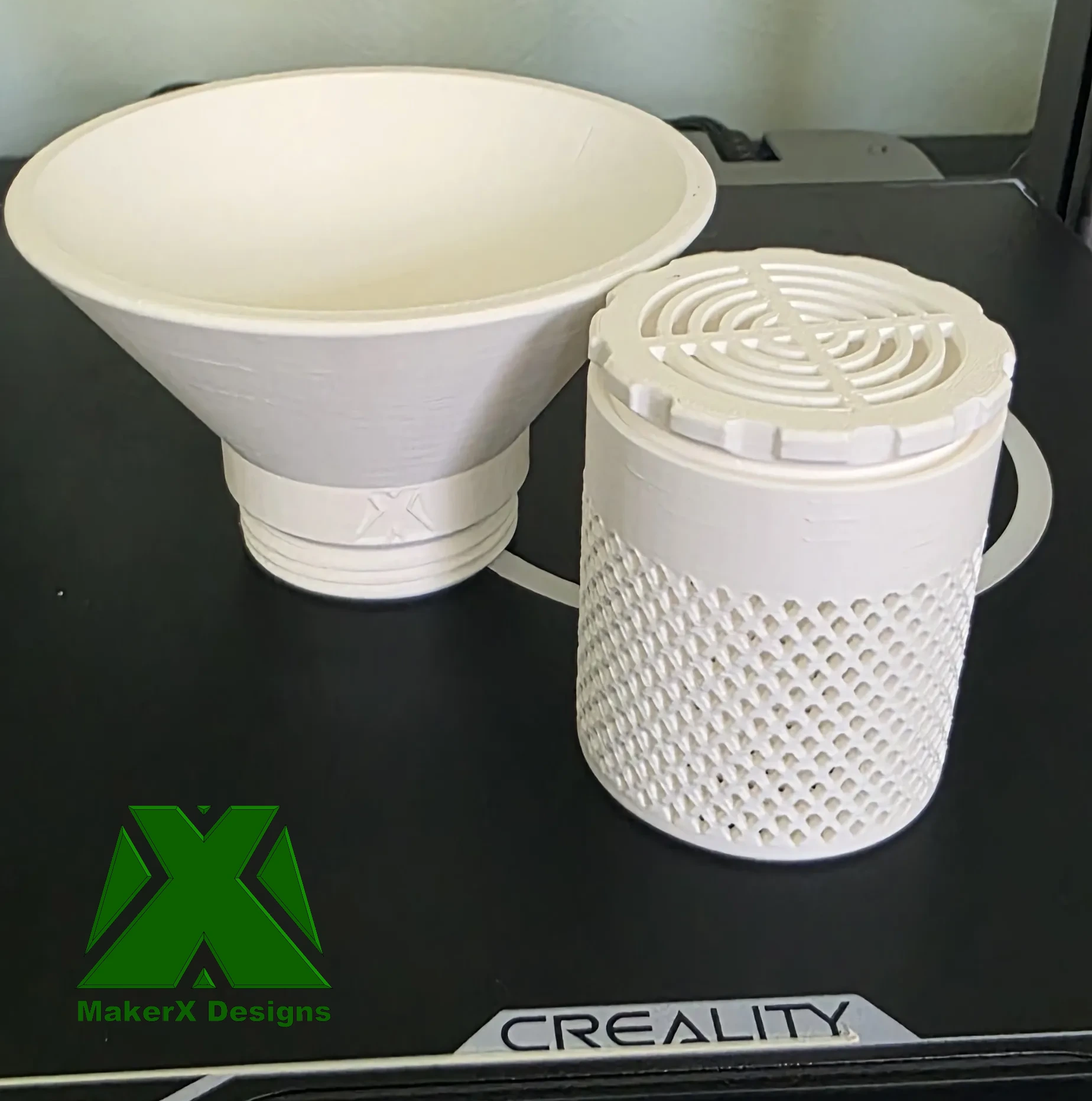

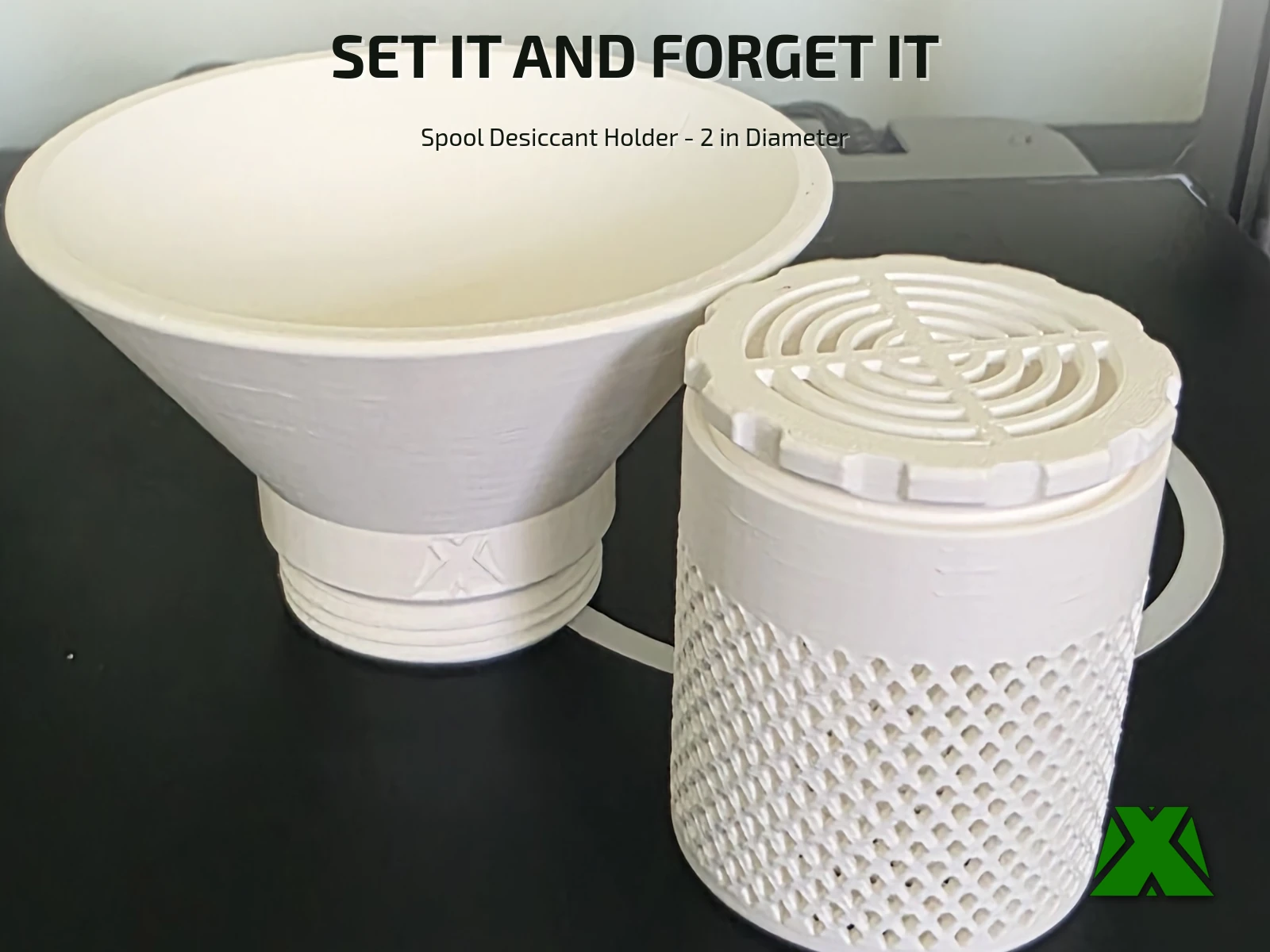

The white printed container with its vented screw-on lid standing beside the wide filling funnel on a dark desk

Downloads

Get the Files

Files are published on Creality Cloud with slicer profiles included. Download the 3MF for the fastest path from file to first print — it carries three plates, so you can run all three parts together or split the funnel into its own job.

★
Download from Creality Cloud — it makes a real difference.

Every download through Creality Cloud earns points that help keep my models free and my pages running. If you have an account, downloading from there is the best way to support the work at no cost to you.

Download on Creality Cloud
▤
Print & Fill Guide

The same guide attached to the model listings, hosted here so you can read it before you print — PDF · 4 pages · 155 KB

Open the Guide

Print Settings

Slice It Right

Nothing overhangs, so there are no supports on any of the three parts — the mesh wall and the vented lid both print as-is. PLA is fine here; the part lives in a sealed bag at room temperature, so heat resistance never comes into it. If the lid threads onto the body tighter than you would like on your printer, drop to 0.16 mm and reprint just the lid.

Supports
None
Material
PLA
Layer Height
0.20 mm
Infill
10% Gyroid
Nozzle
0.4 mm
Walls
2
Top / Bottom
5 / 3
Bed Adhesion
5 mm Brim
Body
50.8 dia × 57.2mm
Lid
50.5 dia × 15.9mm
Funnel
105.8 dia × 63.5mm
All Three
68.32g · 4h 17m

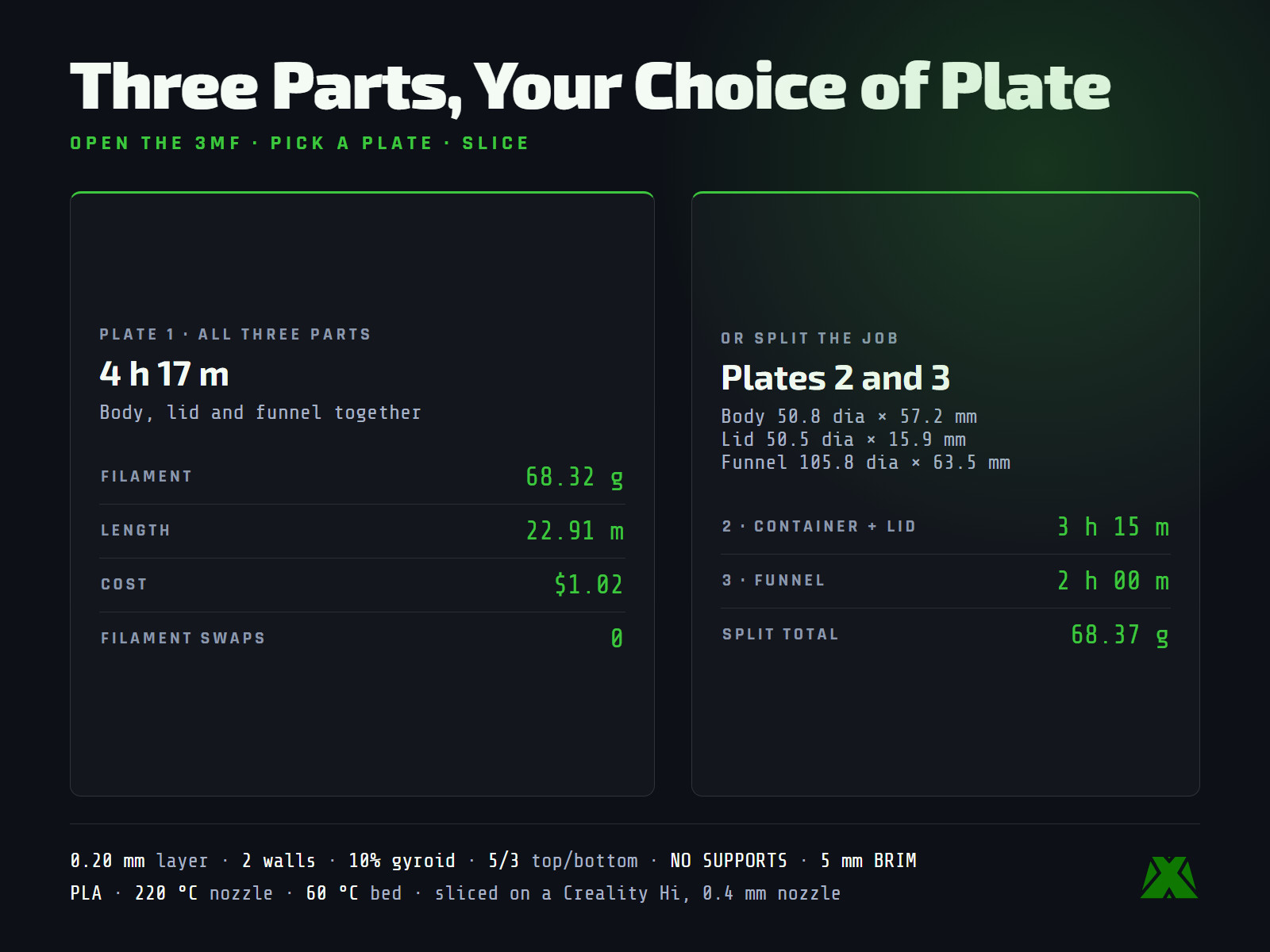

Slice data: all three parts on one plate in 4 h 17 m and 68.32 g, or split across a container-and-lid plate and a funnel plate, with no supports

Using It

Beads In, Moisture Out

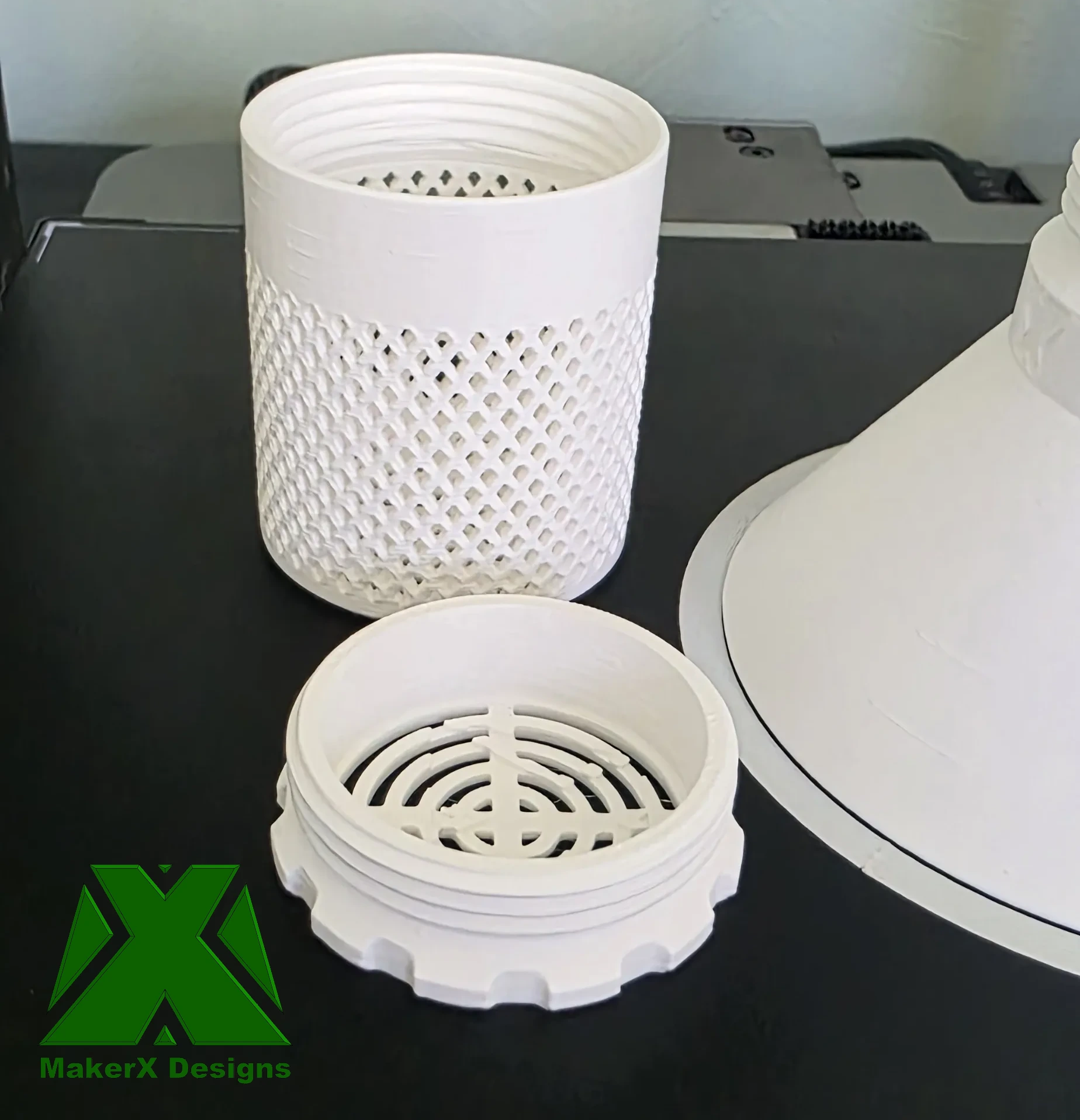

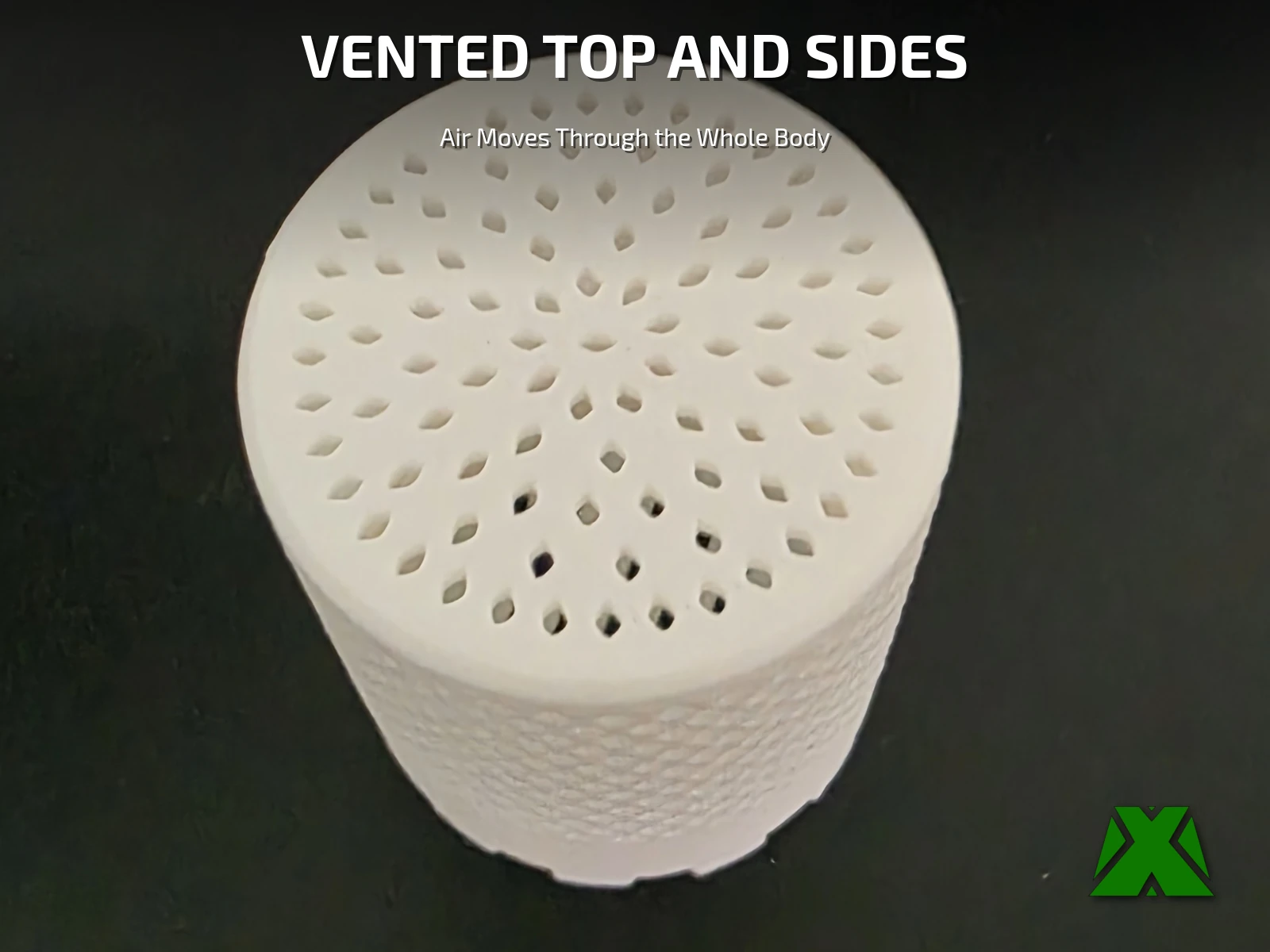

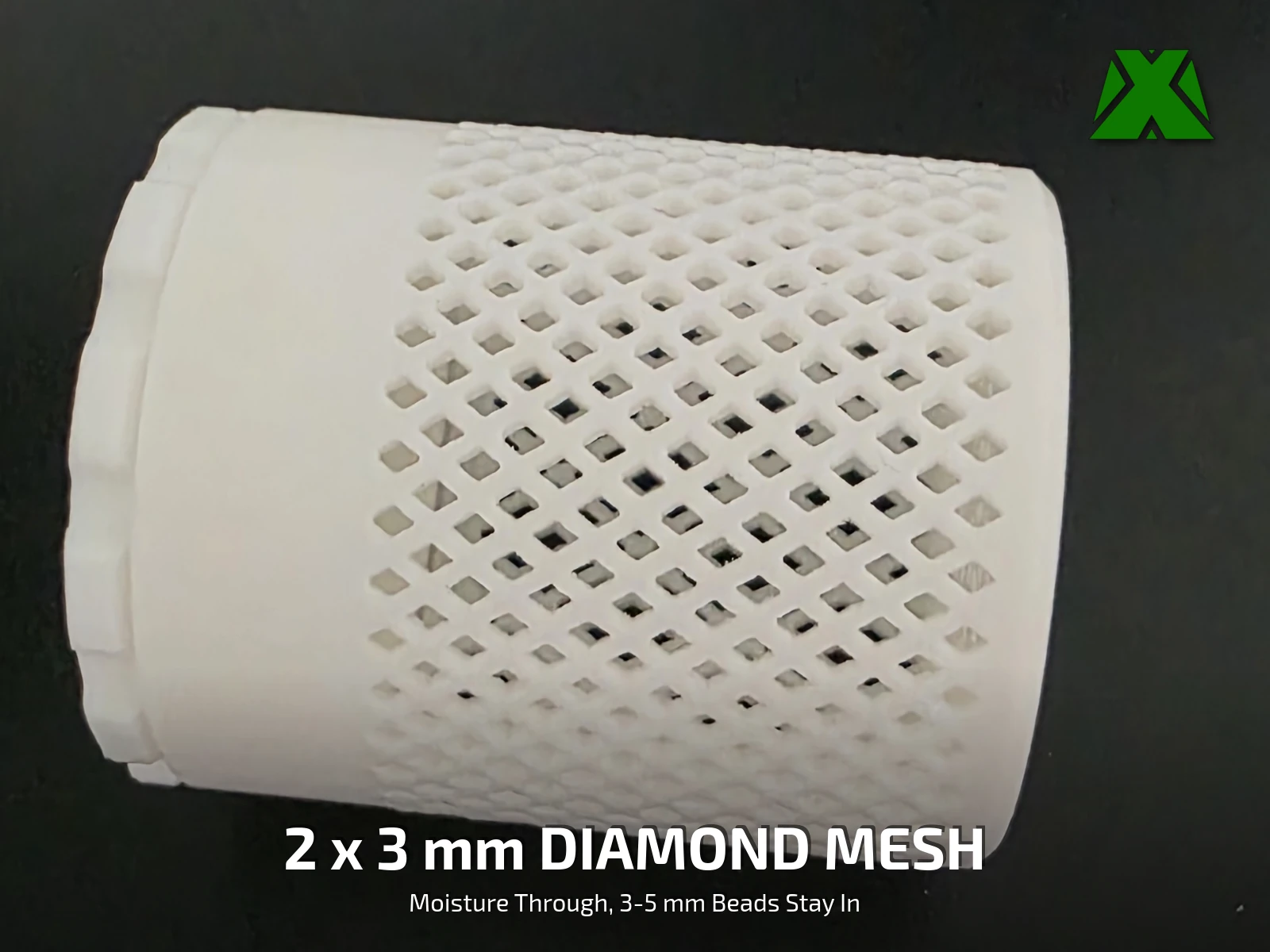

The wall is a 2 x 3 mm diamond mesh and the lid is vented across its whole face, so air moves through the entire body rather than just past an opening at one end. That mesh is sized for 3–5 mm silica gel beads: moisture passes freely, beads stay put. Indicating beads work well, since the vents let you read the color without opening anything.

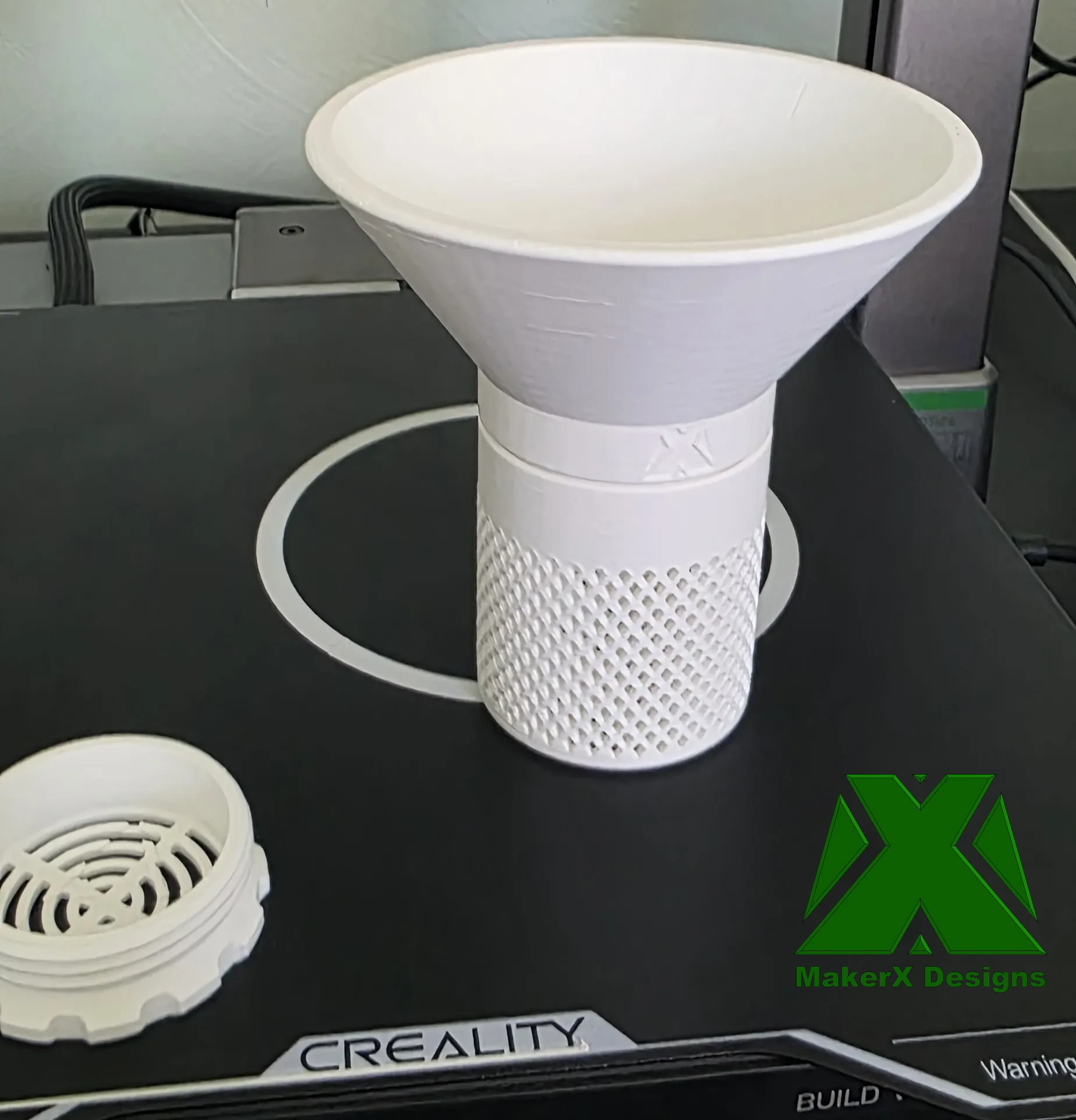

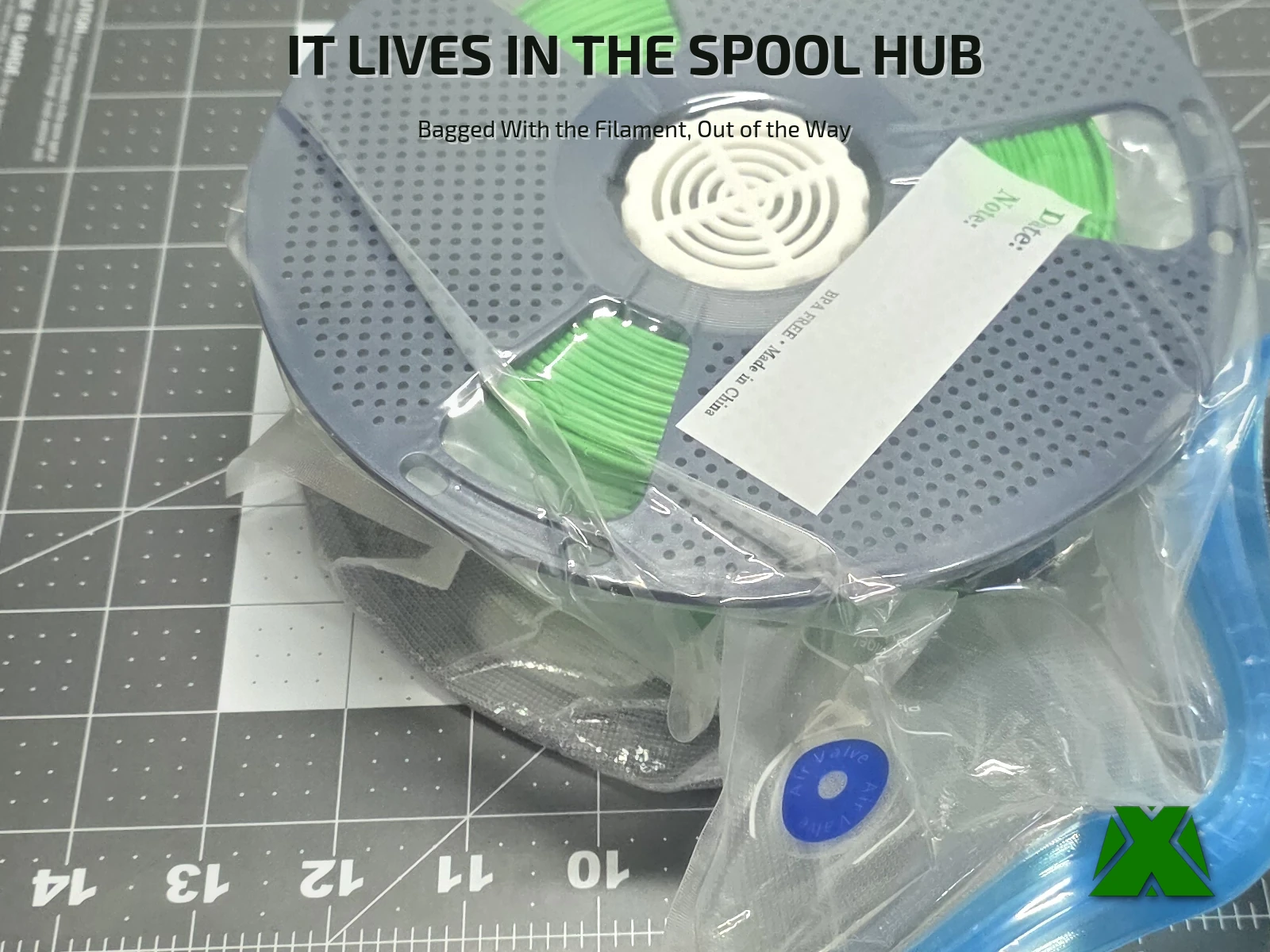

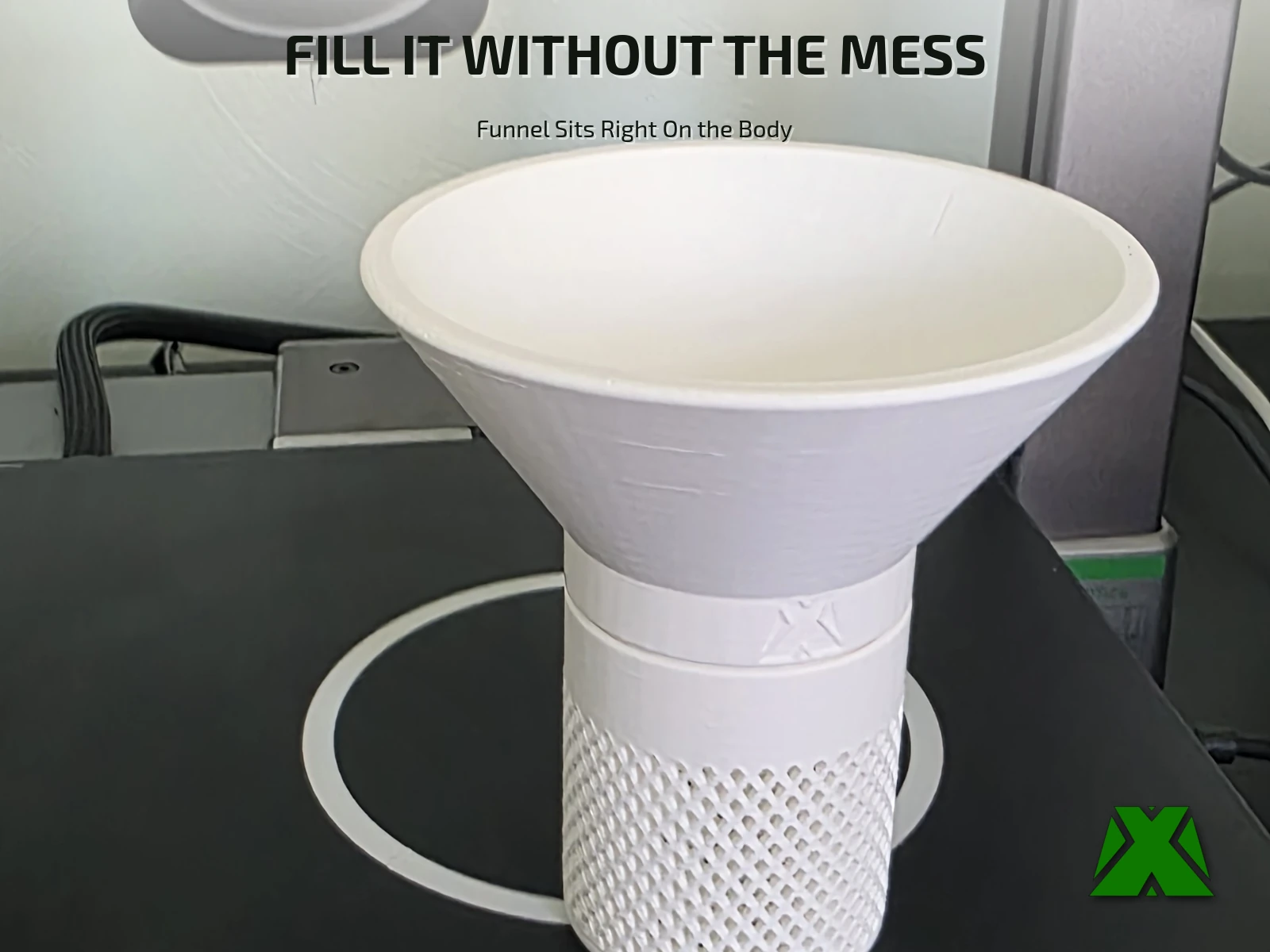

Seat the funnel on the body, pour, lift it off and screw the lid down — that is the whole routine, and it is why the funnel is in the download rather than sold as an extra. Then drop the container into the middle of a spool and bag the two together. Because it sits inside the hub instead of rattling around loose beside the spool, the bag still pulls down flat and the spools still stack.

More models and tested slicer settings on my Creality Cloud profile.

View Profile

Released under CC BY-NC-ND 4.0 — free for personal use, credit appreciated, no commercial use or derivatives.
