Filament Storage Side Labels

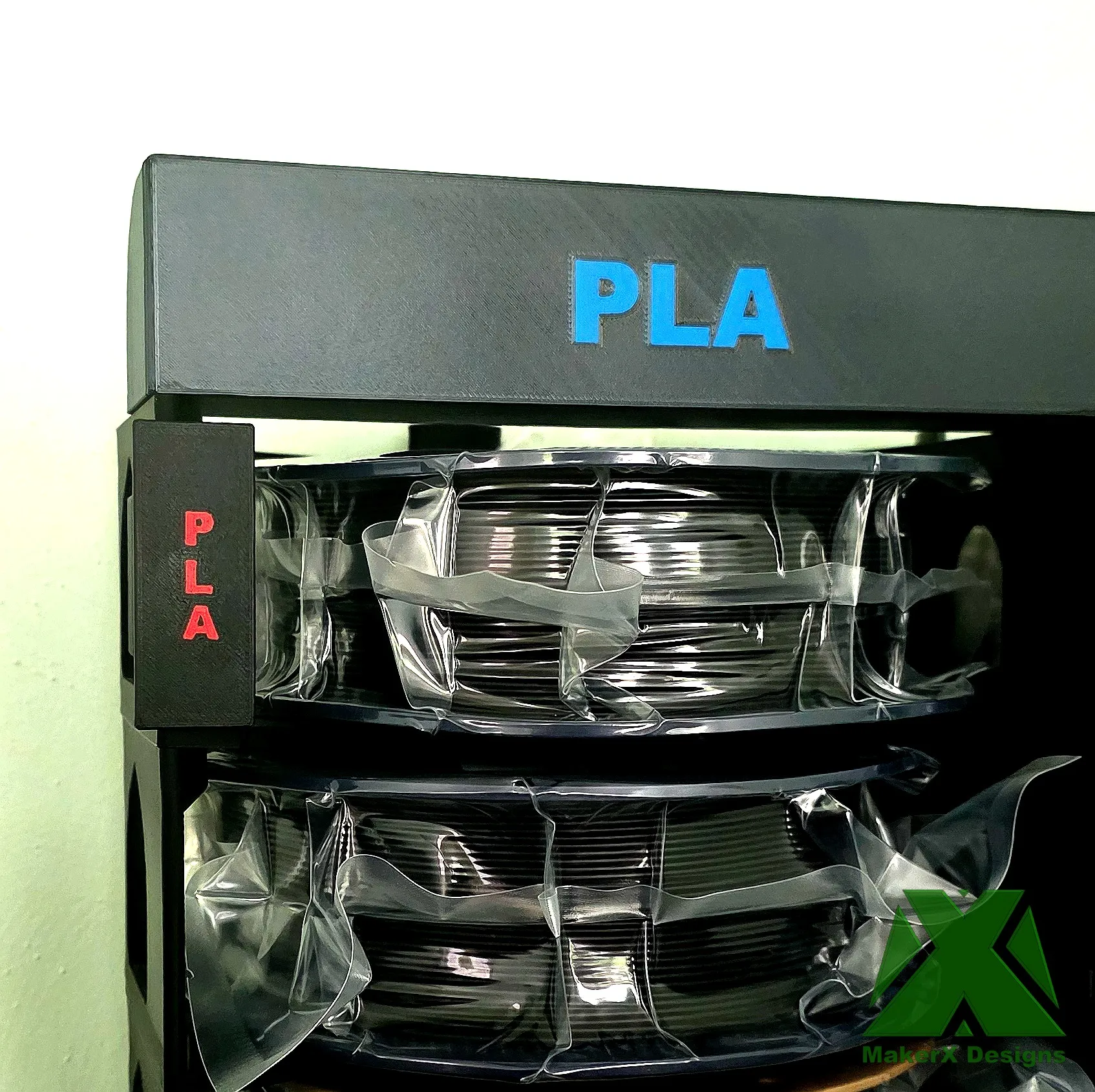

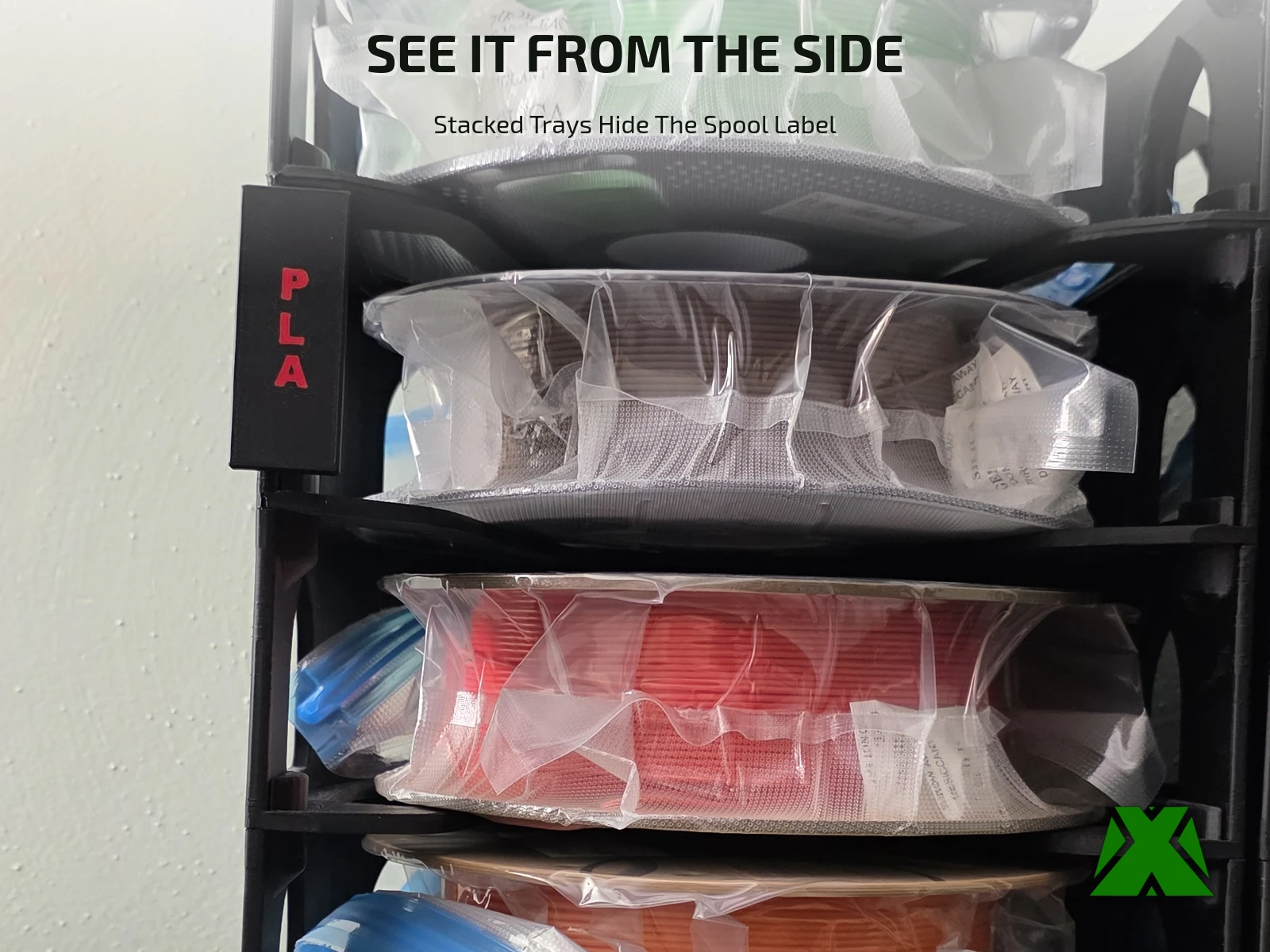

Stack the trays and the spool label disappears behind the one in front. This puts it back — on the side wall, where you are actually looking. Two printed clips, a friction fit, no adhesive, and it pops off in a second when the spool gets swapped.

A black side label with red PLA lettering held between two fingers, showing how small it is

Downloads

Get the Files

One project file holds all five plates — pick the label you want and slice it. The STLs are in there too if you would rather bring your own profile.

★
Download from Creality Cloud — it makes a real difference.

Every download through Creality Cloud earns points that help keep my models free and my pages running. If you have an account, downloading from there is the best way to support the work at no cost to you.

Download on Creality Cloud

The 3MF is the faster path — open it, pick a plate, and slice. A full print & use guide is attached to the Creality listing.

▤
Print & Use Guide

The same guide attached to the model listings, hosted here so you can read it before you print — PDF · 4 pages · 349 KB

Open the Guide

What's Included

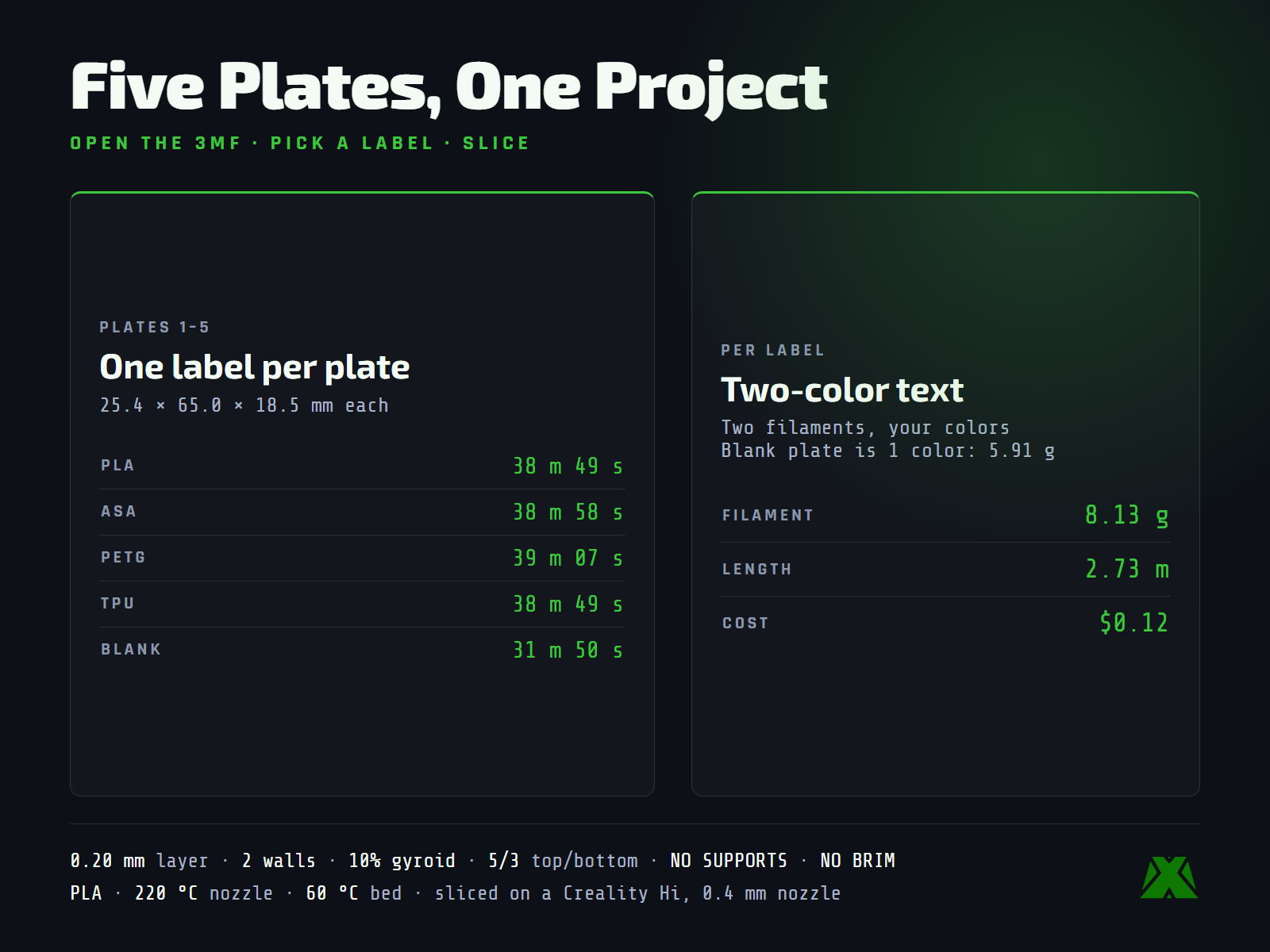

Five Plates, One Project

Every label is the same part with different lettering, so they all print the same way. The name is what the label says — all five plates are sliced for PLA, so print them in whatever you like.

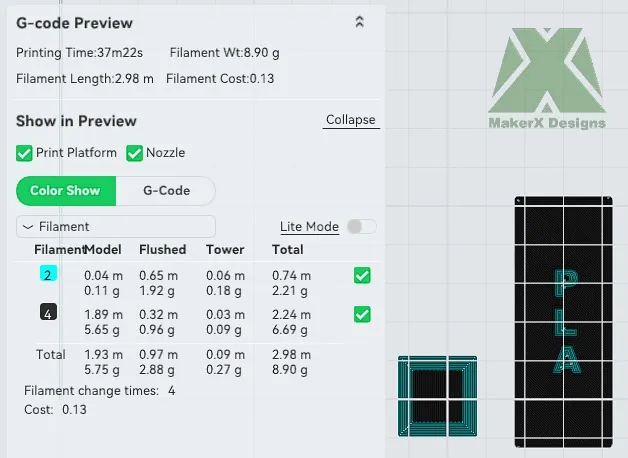

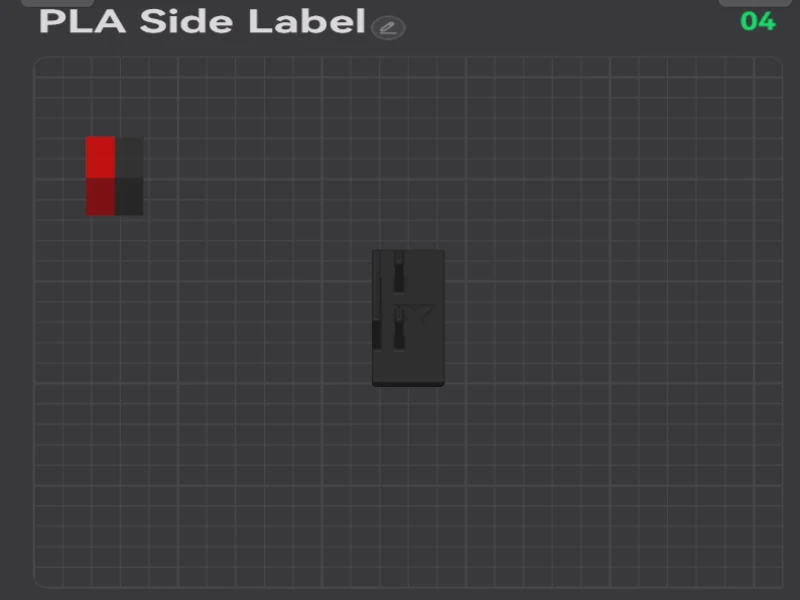

The PLA plate in the slicer, with the label and its purge tower laid out
PLA
The everyday one. 38 m 49 s, 8.13 g.

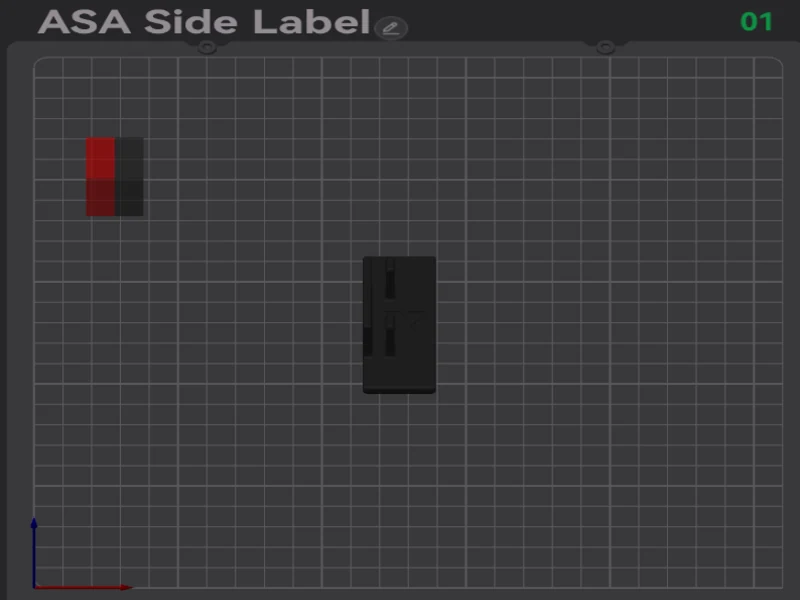

The ASA plate in the slicer, with the label and its purge tower laid out
ASA
For the tray holding your ASA. 38 m 58 s, 8.13 g.

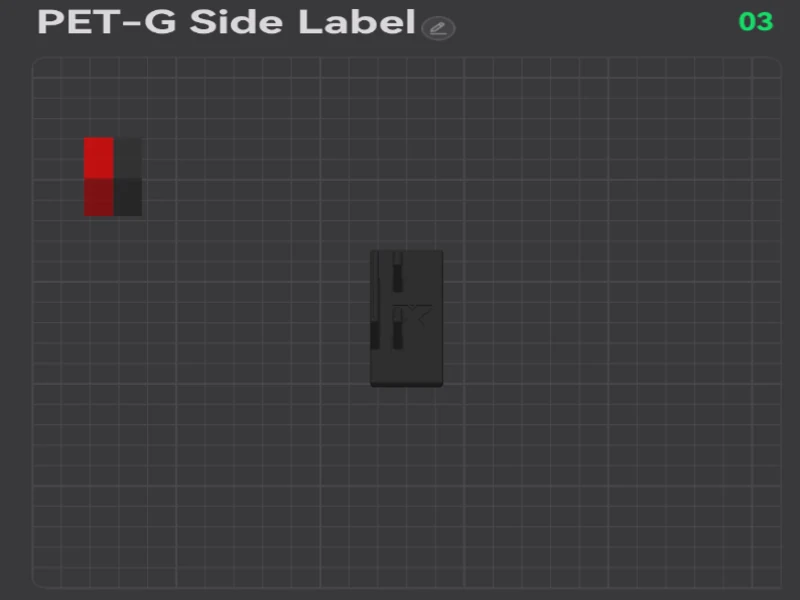

The PET-G plate in the slicer, with the label and its purge tower laid out
PETG
Four letters, so a hair slower. 39 m 07 s, 8.13 g.

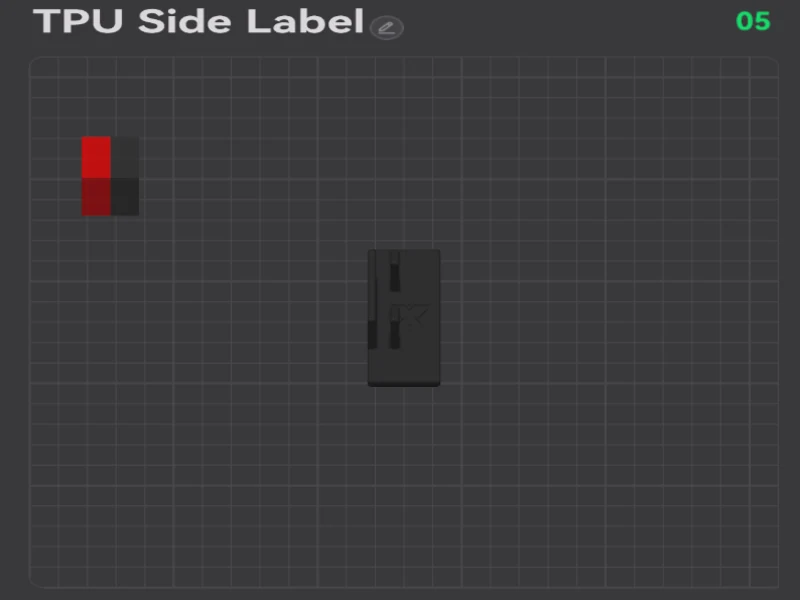

The TPU plate in the slicer, with the label and its purge tower laid out
TPU
For the flexible spool you keep forgetting. 38 m 49 s, 8.13 g.

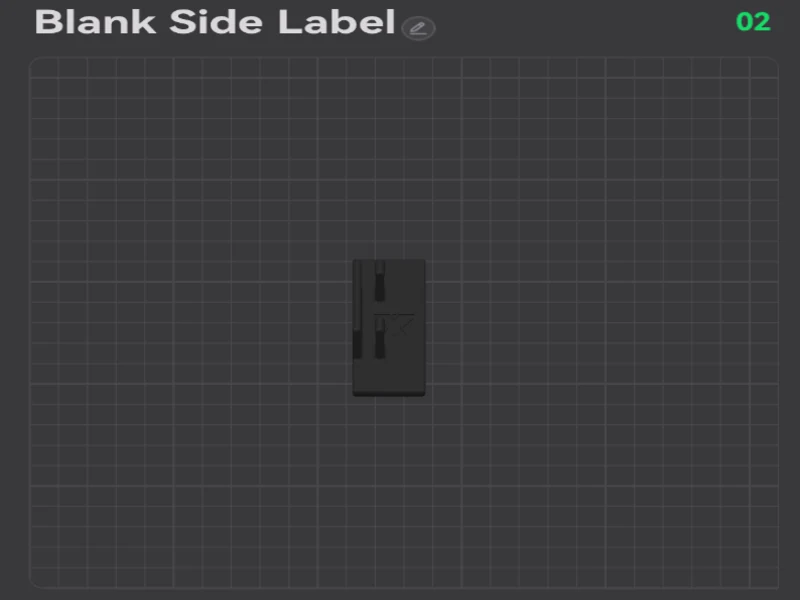

The Blank plate in the slicer — one label, no purge tower, because it is single color
Blank
No text — label-maker strip, paint pen, or a color code. One color, so it is the quick one: 31 m 50 s, 5.91 g.

Print Settings

Slice It Right

These are the settings the reference prints were made with. The 3MF carries the full profile — open it in Creality Print or any slicer that reads 3MF projects and it is ready to go. The four lettered plates are set up for two filaments with three tool changes, so printing them in two colors needs a CFS, an AMS or another multi-material unit. Starting from an STL instead? An STL carries no color — select the part and use Paint in your slicer, or it slices in a single color, which is why the text can look like it disappeared. Either way keep the lettered face down on the plate: fastest, and the least filament wasted on purge.

Supports
None
Orientation
Face Down, Flat
Layer Height
0.20 mm
Infill
10% Gyroid
Nozzle
0.4 mm
Walls
2
Bed Adhesion
None
Each Label
25.4×65×18.5mm · 8.13g · ~39m

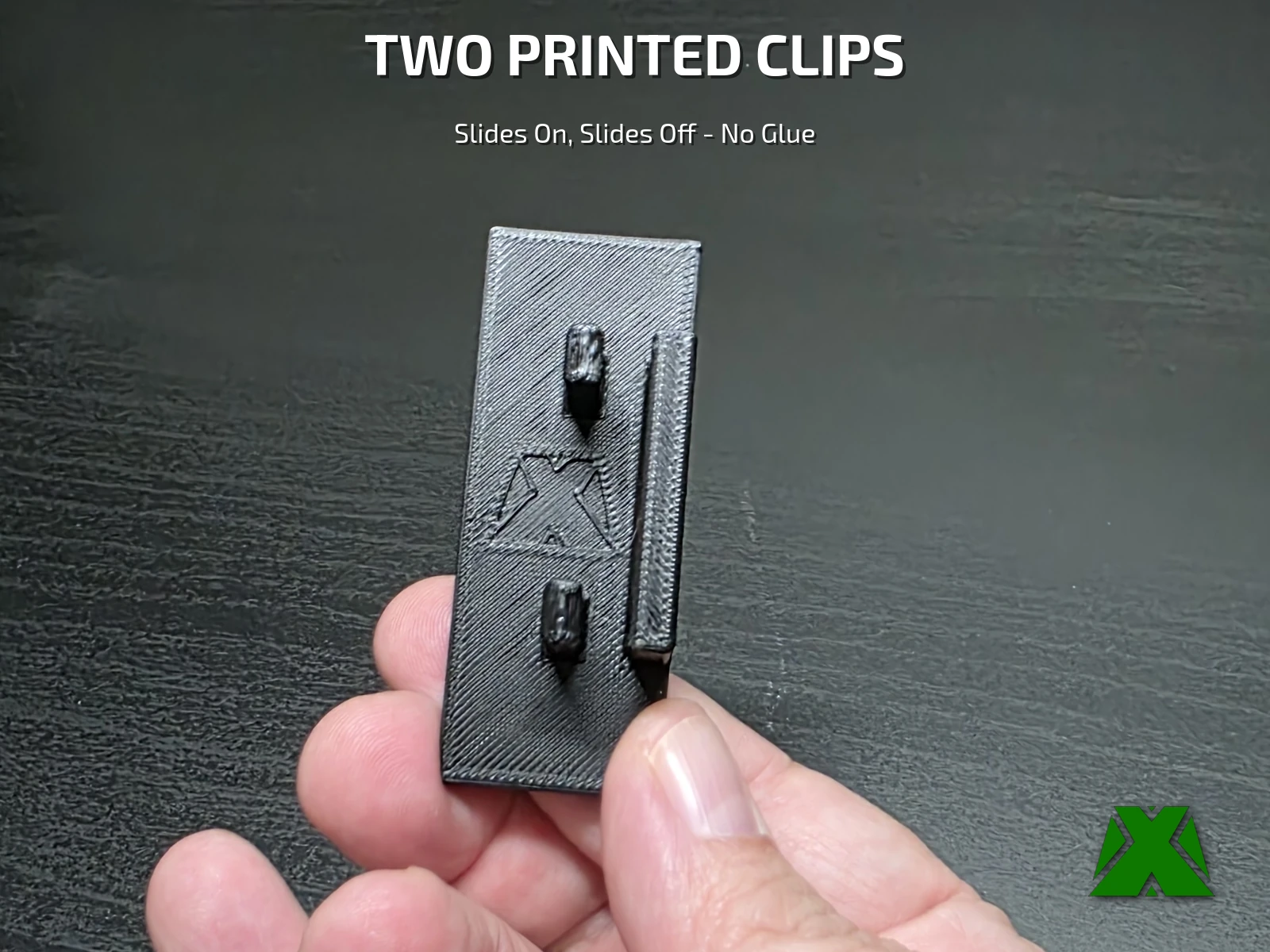

The back of the label showing its two printed clips and the embossed MakerX X

More models and tested slicer settings on my Creality Cloud profile.

View Profile

Released under CC BY-NC-ND 4.0 — free for personal use, credit appreciated, no commercial use or derivatives.
