Gridfinity Paint Rack

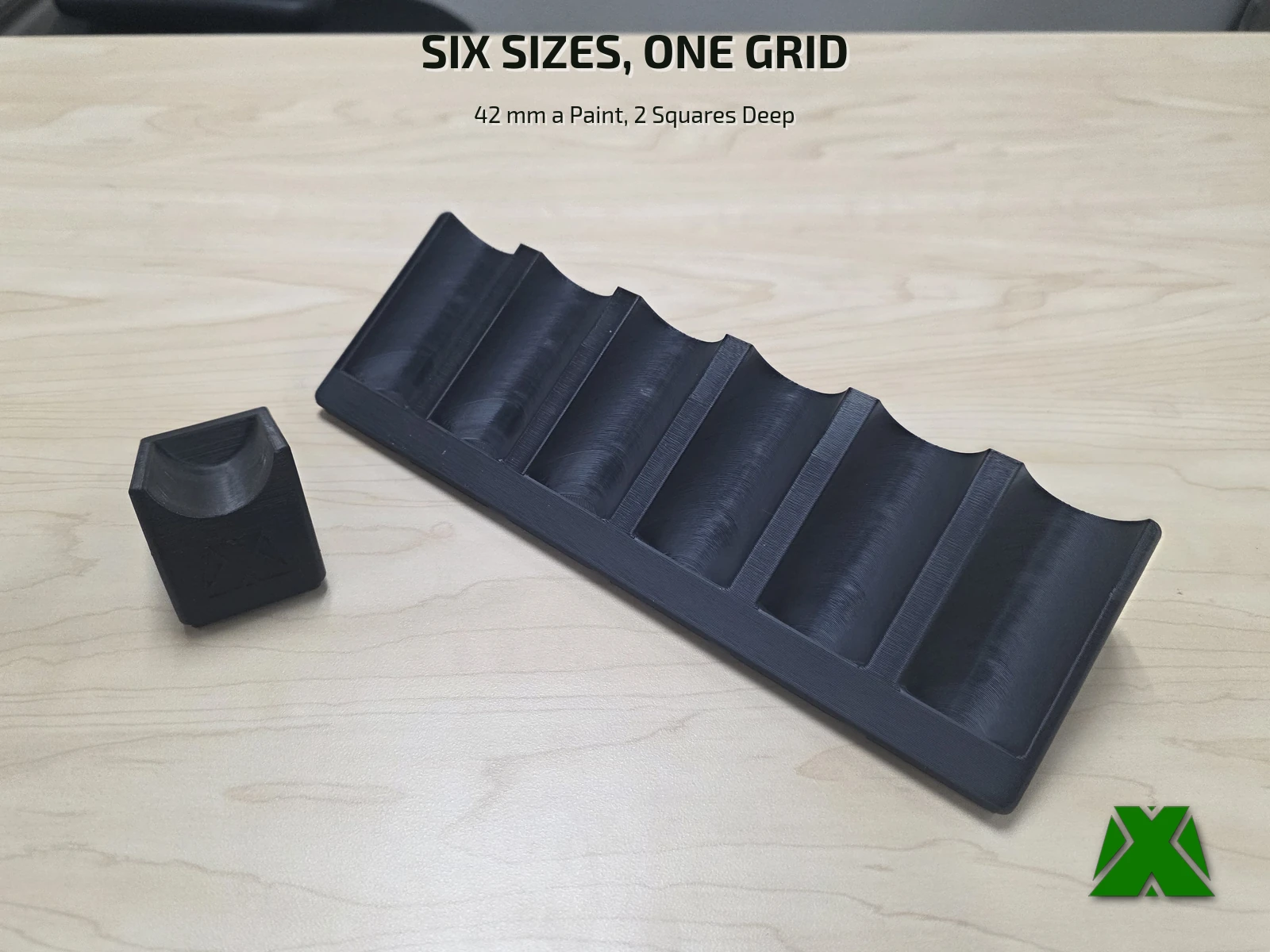

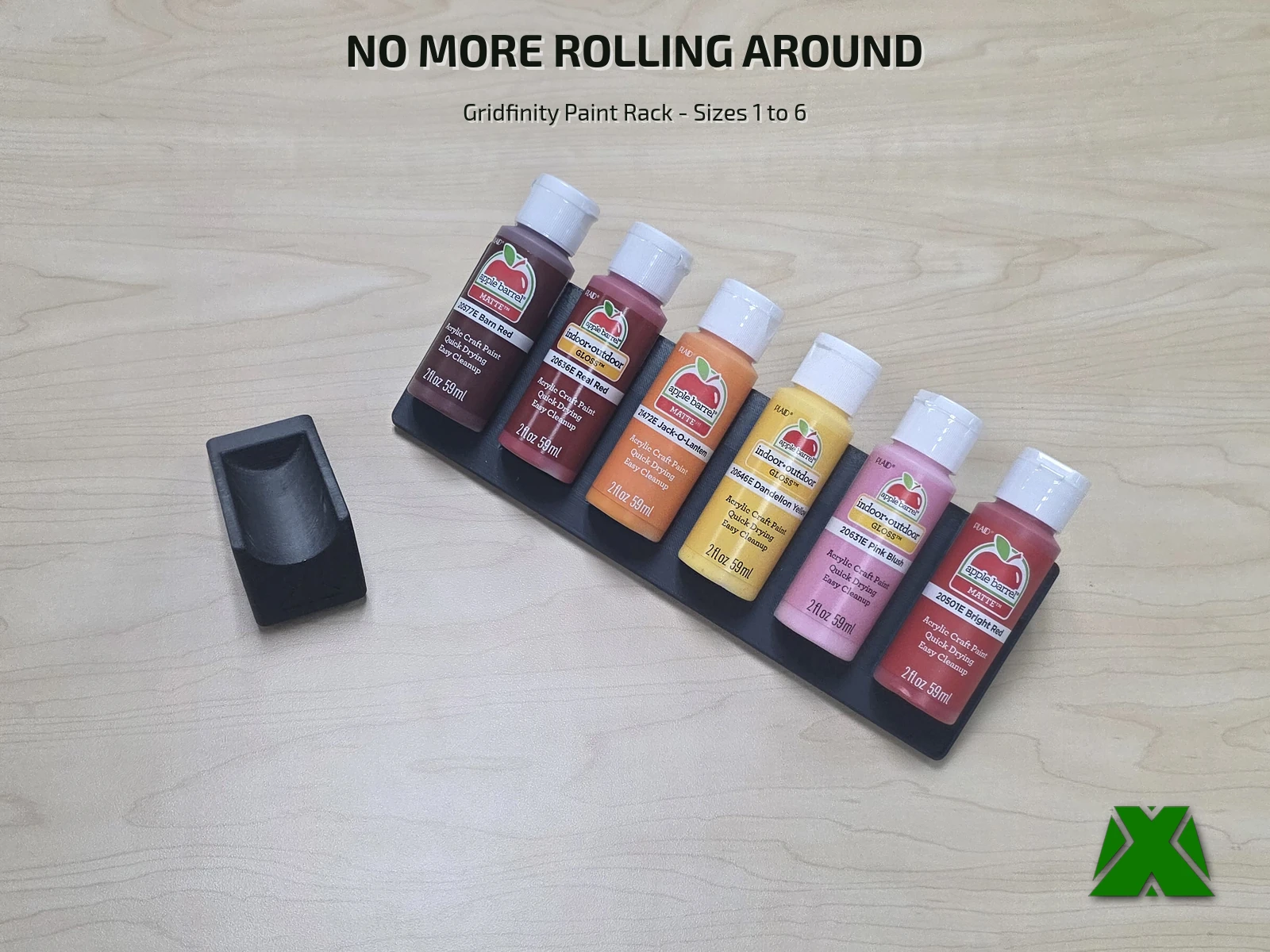

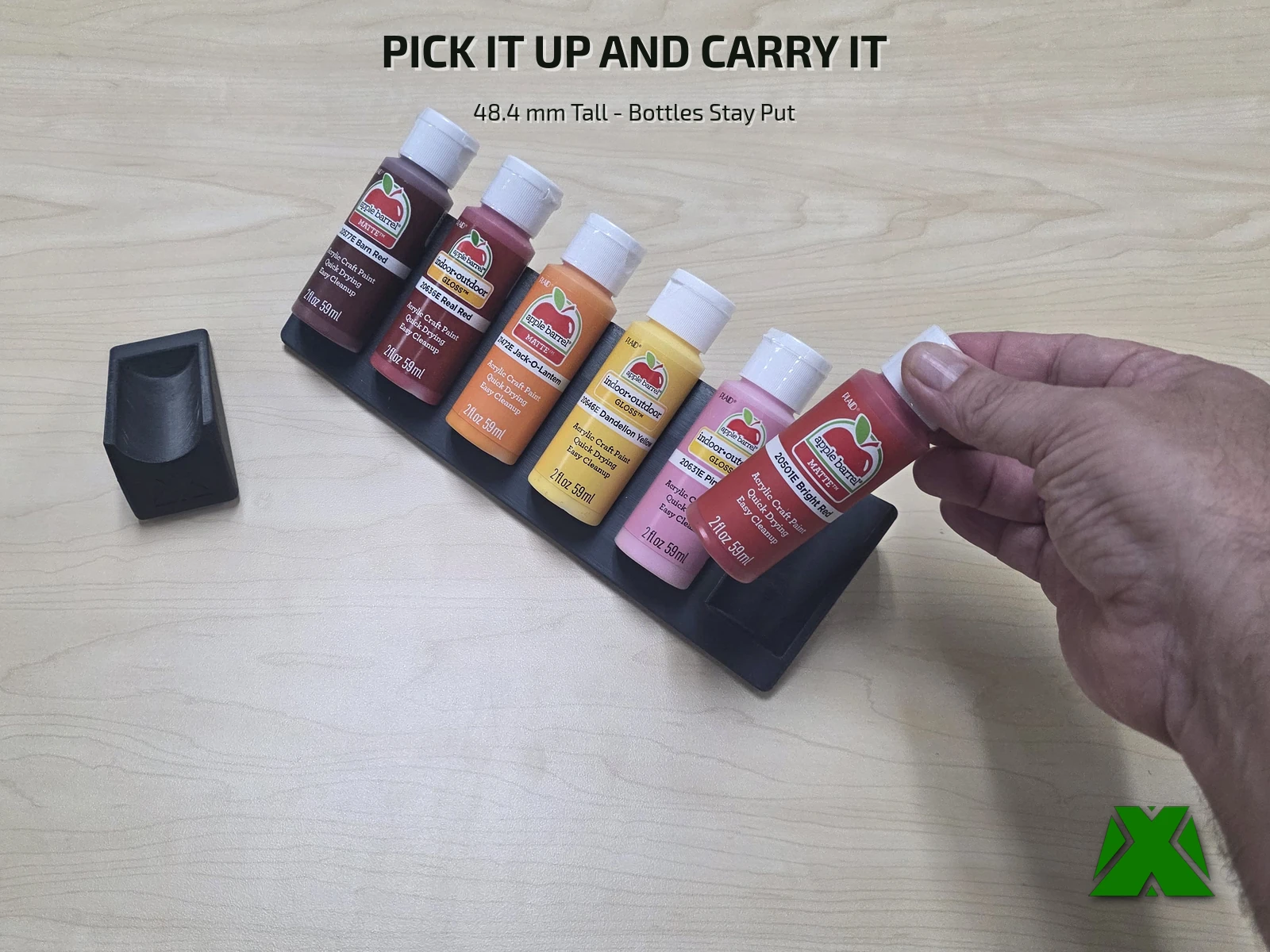

You know the sound — you open the drawer and half your Apple Barrel bottles make a break for it, rolling into each other with the labels face down. This rack drops into a standard Gridfinity base grid and gives every bottle a scalloped slot of its own, tipped up so you read the label instead of the cap. Six sizes ship, one slot through six, so you can fill a drawer exactly rather than nearly.
Downloads
Get the Files
Files are published on Creality Cloud with slicer profiles included. Download the 3MF for the fastest path from file to first print — it carries all six sizes as ready-made plates.
Every download through Creality Cloud earns points that help keep my models free and my pages running. If you have an account, downloading from there is the best way to support the work at no cost to you.
Download on Creality CloudThe same guide attached to the model listings, hosted here so you can read it before you print —
Print Settings
Slice It Right

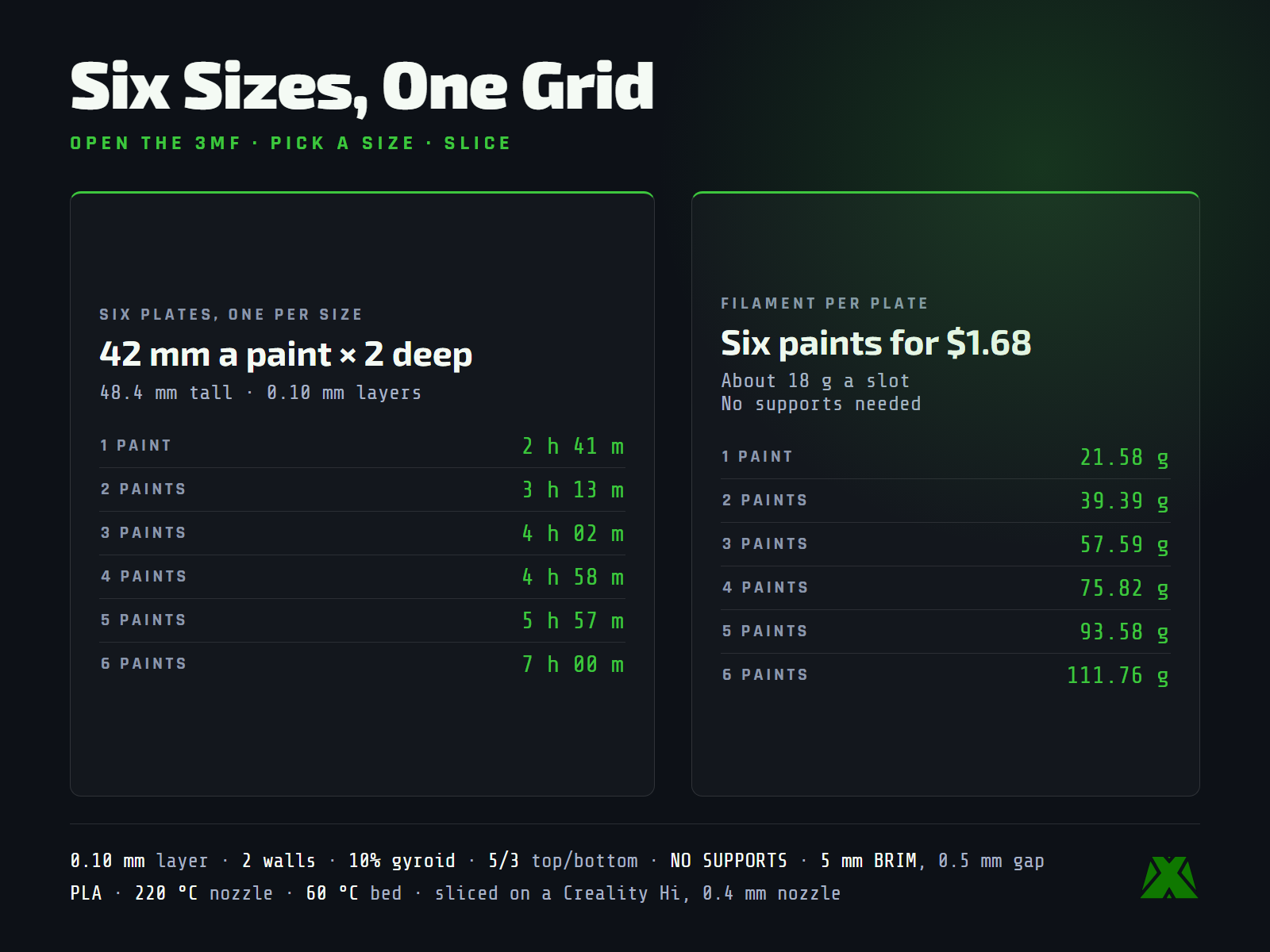

Nothing overhangs, so supports are switched off in the profile and stay off. The 5 mm brim carries a 0.5 mm object gap, which is what lets it peel away in one ring without scarring the base — and the base is the Gridfinity interface, so anything left on it stops the rack seating in the grid.
Sizes run 41.5, 83.5, 125.5, 167.5, 209.5 and 251.5 mm wide — one 42 mm Gridfinity unit per bottle, every time. Filament works out at about 18 g a slot once you are past the first, so two three-slot racks cost the same as one six and free the printer up sooner.
More models and tested slicer settings on my Creality Cloud profile.
View ProfileReleased under CC BY-NC-ND 4.0 — free for personal use, credit appreciated, no commercial use or derivatives.
