Vertical Laptop Stand

Stands a closed laptop on edge instead of flat — it stops covering the desk and starts getting some air. Fits laptops up to 25 mm thick. One printed piece, no hardware, no supports.

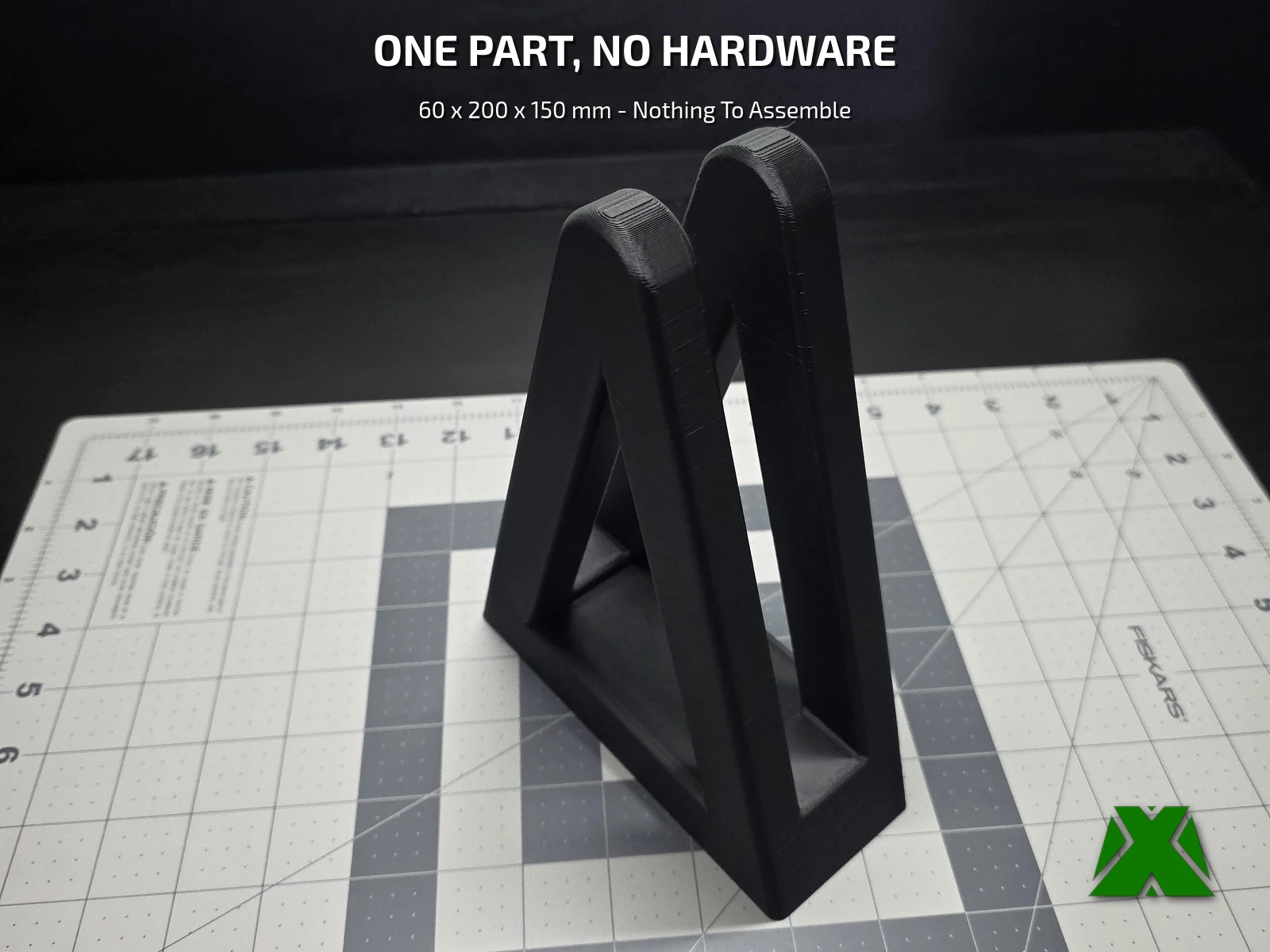

The printed vertical laptop stand alone on a cutting mat, a rule along the mat edge showing its size

Downloads

Get the Files

One part on one plate. The 3MF carries the tested profile — open it and slice — and the STL is there if you would rather bring your own.

★
Download from Creality Cloud — it makes a real difference.

Every download through Creality Cloud earns points that help keep my models free and my pages running. If you have an account, downloading from there is the best way to support the work at no cost to you.

Download on Creality Cloud

The 3MF is the faster path — open it and slice. A full print & use guide is attached to the Creality listing.

▤
Print & Use Guide

The same guide attached to the model listings, hosted here so you can read it before you print — PDF · 3 pages · 723 KB

Open the Guide

What's Included

One Piece, No Hardware

Nothing to assemble and nothing to fasten. It comes off the plate finished and stands on the desk the same way it stood on the printer.

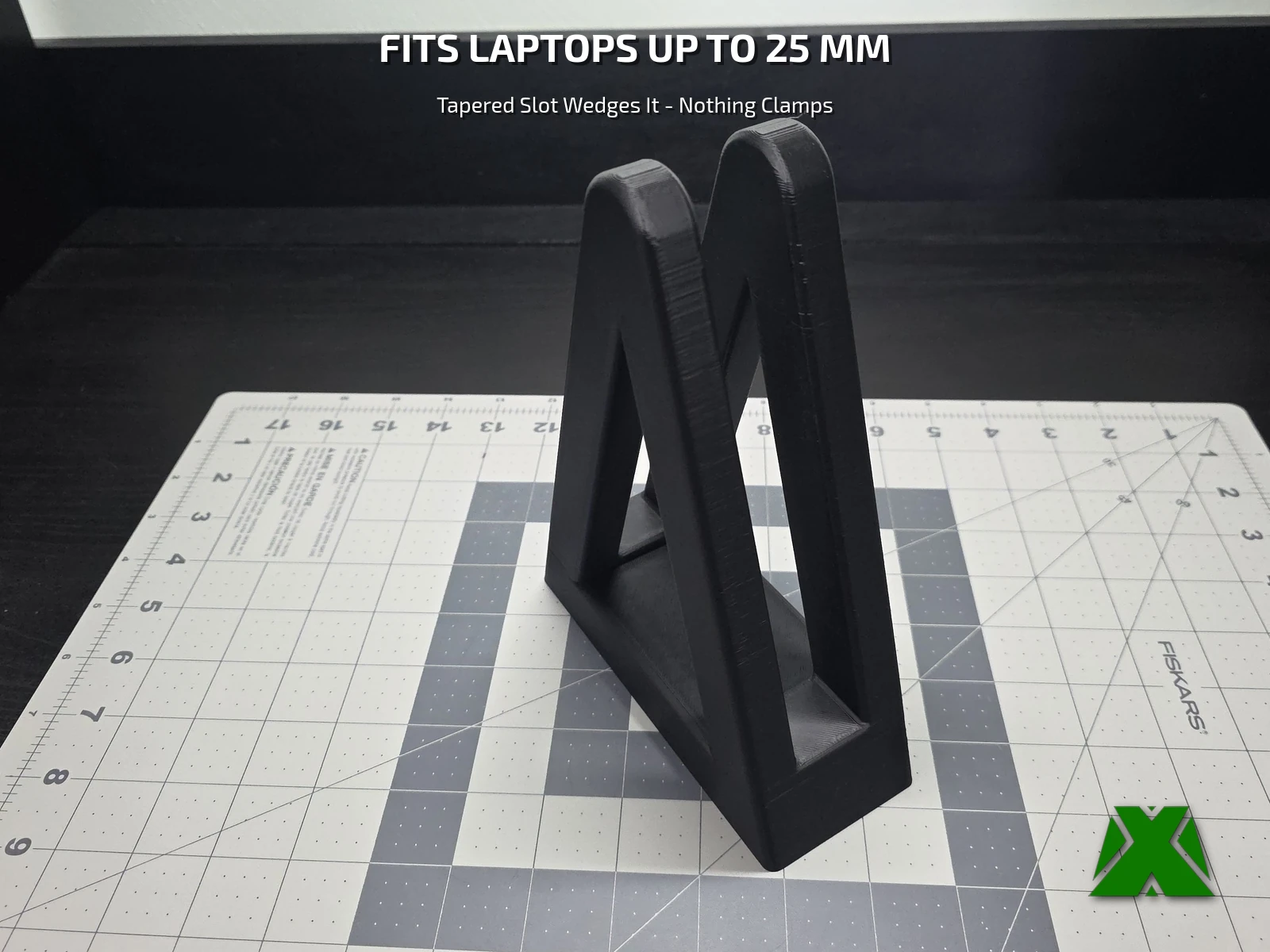

The stand from a low angle showing the tapered channel between its two arms
A Taper, Not A Clamp
The channel narrows as it goes down, so the laptop settles into the width it needs instead of being gripped at one fixed size. Anything up to 25 mm thick.

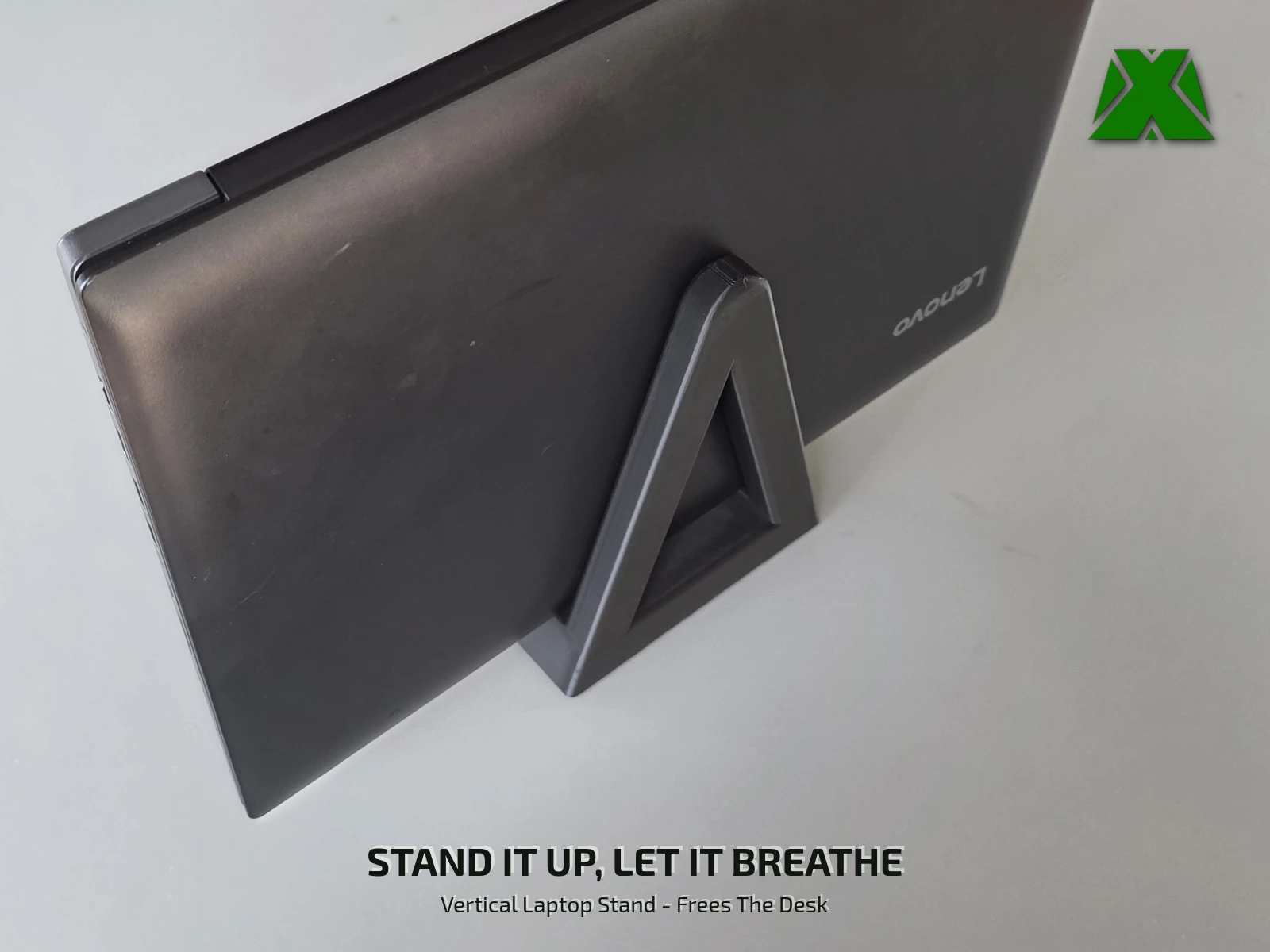

A closed laptop standing on edge in the printed stand on a desk
On Edge, Not Flat
A closed laptop lying flat covers the desk and traps its own heat against it. Standing it up gives the desk back and leaves both faces open to the air.

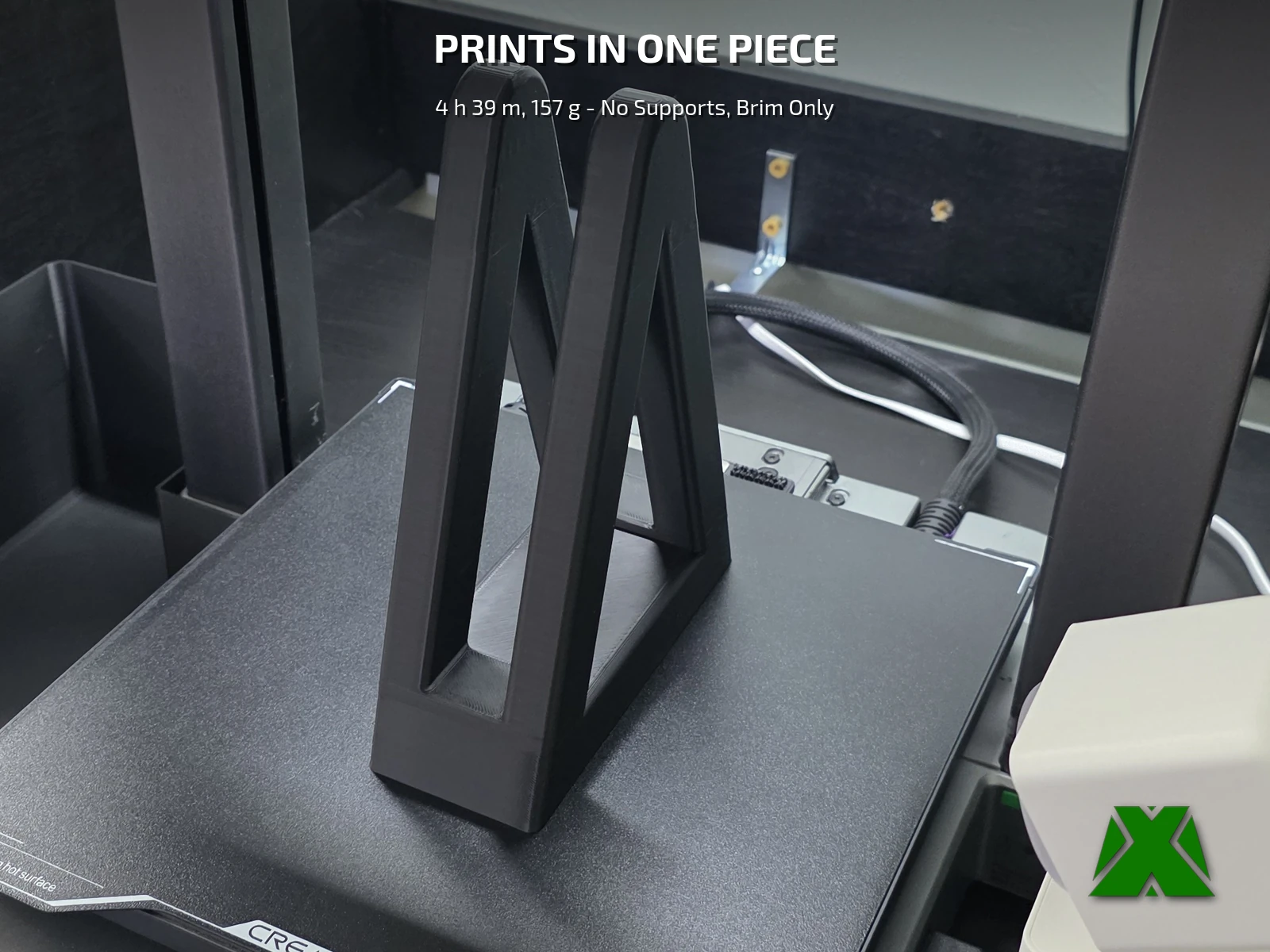

The stand printed upright on the build plate with its brim still attached
Prints Upright
It prints standing the same way it stands on the desk, so no overhang needs holding up — no supports at all. 4 h 39 m, 156.85 g.

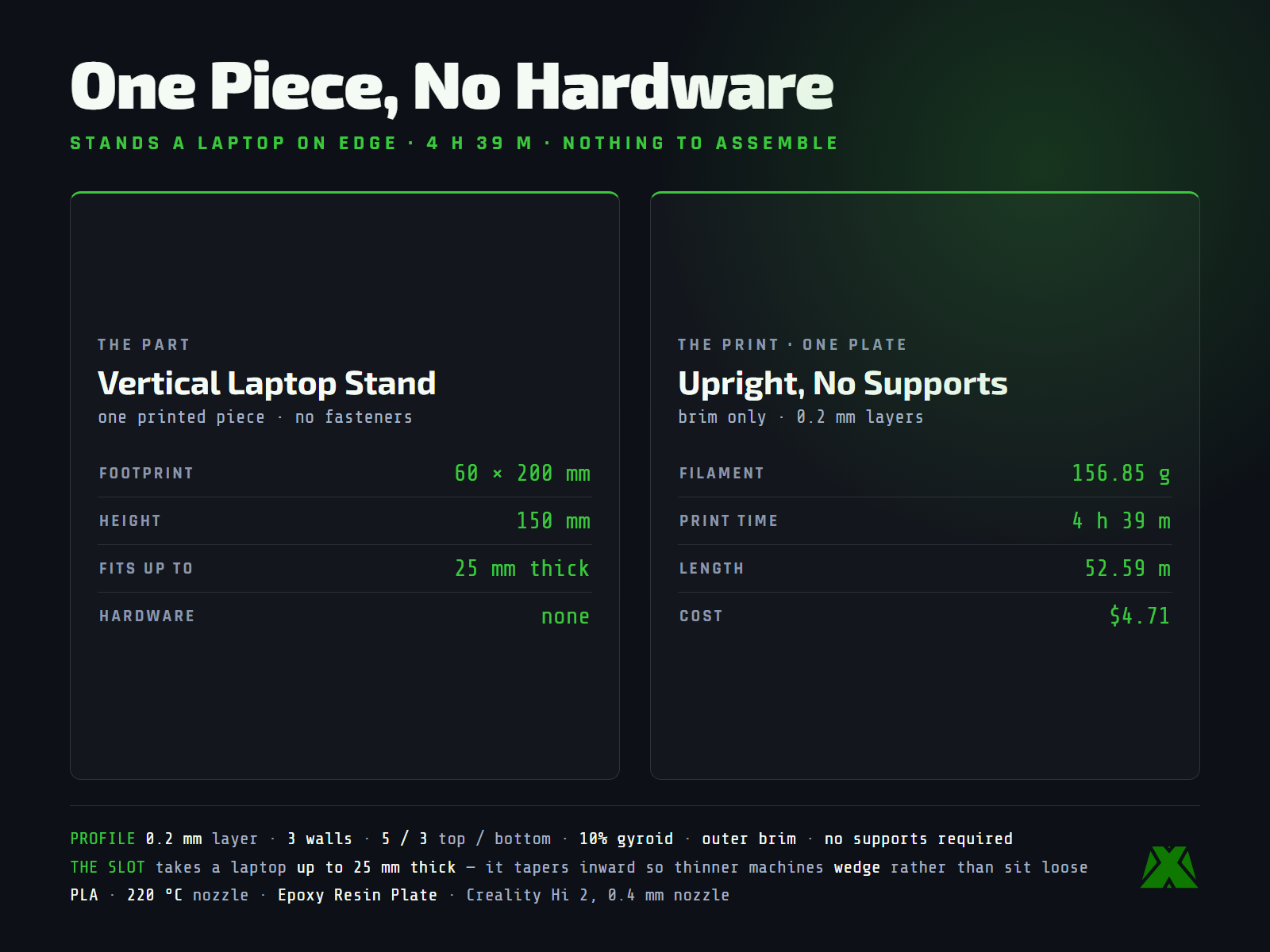

Print Settings

Slice It Right

One plate, one part, already configured in the 3MF. It prints standing upright — the same way it stands on the desk — and needs no supports at all. Leave the brim on: the footprint is narrow for a part this tall, and the first layer is what holds it steady for four and a half hours.

10% gyroid is plenty for a closed laptop. If you are standing something unusually heavy in it, take the walls to 4 or 5 rather than raising the infill — it costs less time and does more.

Supports
None Required
Material
PLA
Layer Height
0.2 mm
Infill
10% Gyroid
Nozzle
0.4 mm
Walls
3
Bed Adhesion
Outer Brim
Print Time
4 h 39 m
Filament
156.85 g
Size
60 x 200 x 150 mm
Fits Up To
25 mm Thick
The stand printed upright on the build plate with its brim still attached
