Louvered Vent Cover

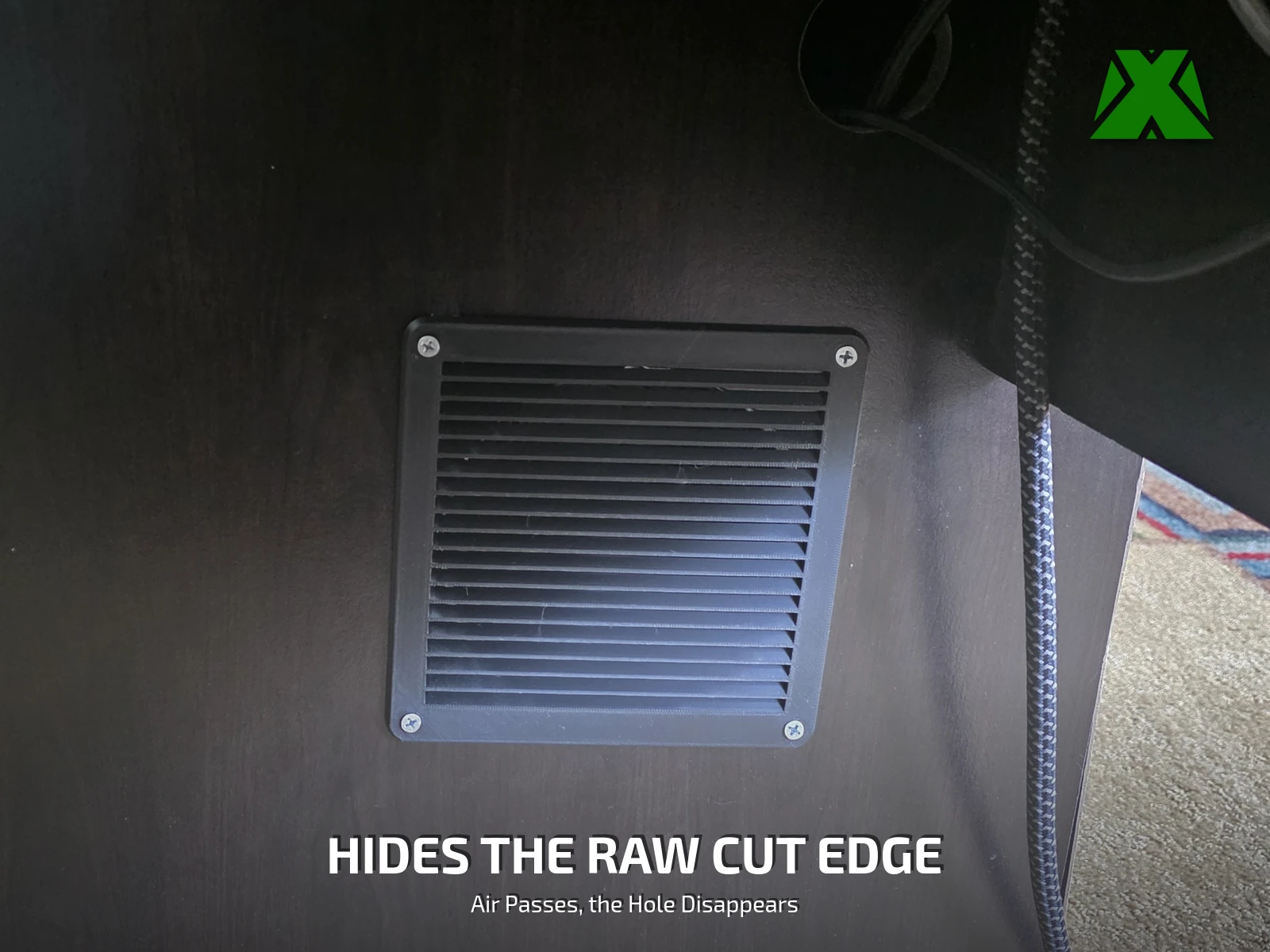

Cut a hole saw opening into a cabinet, door, or wall for airflow and you are left with a raw hole staring back at you — functional, but not finished. This covers it cleanly and still lets the air through. One flat 175 mm square panel, 4 mm thick, in two versions: with pre-placed screw holes, or plain for adhesive or a friction fit. Prints flat with no supports.

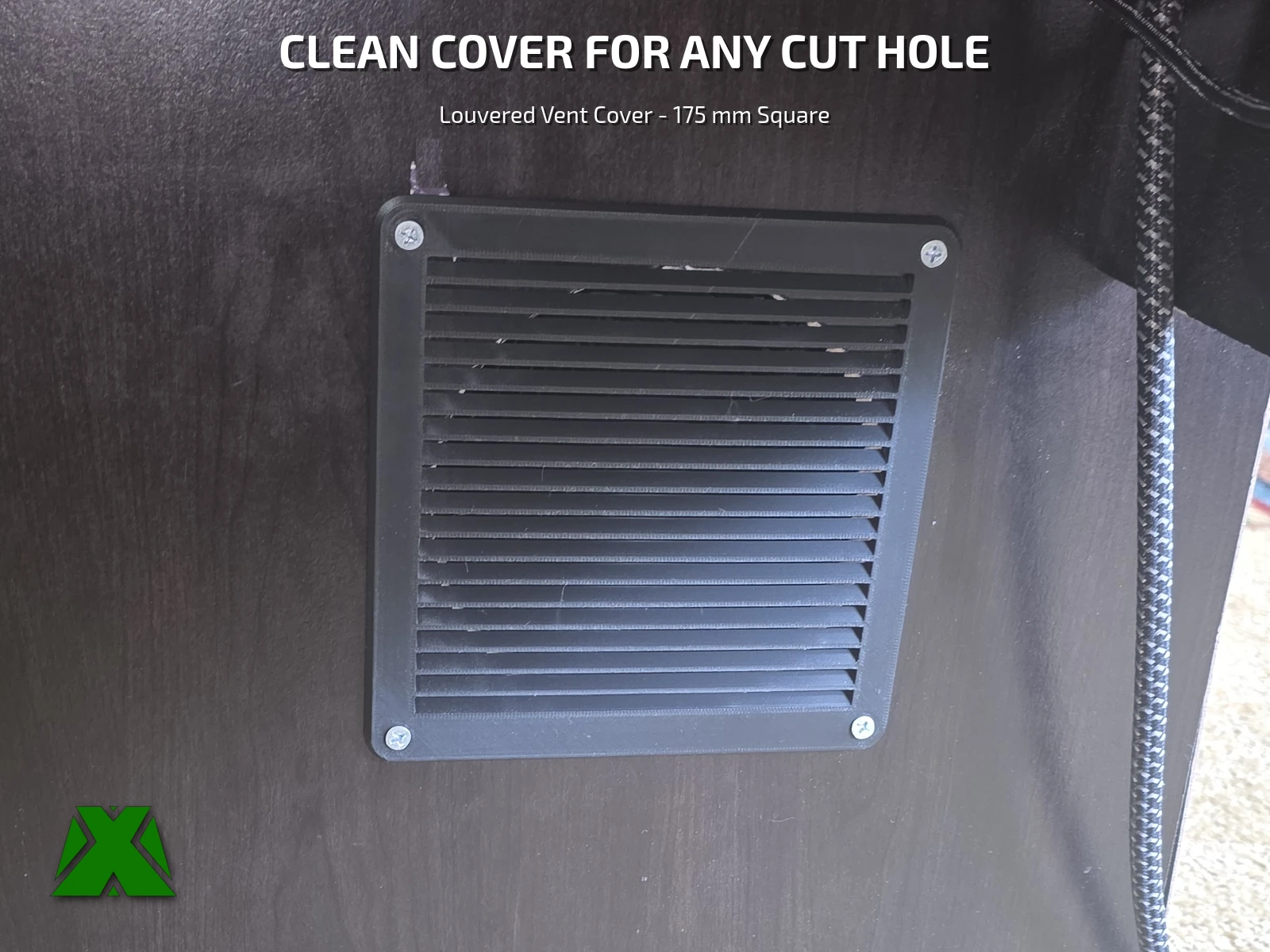

The black louvered panel screwed over a cut opening in a dark wood cabinet panel, its angled slats running edge to edge

Downloads

Get the Files

Files are published on Creality Cloud with slicer profiles included. Download the 3MF for the fastest path from file to first print — both versions are already laid out, one per plate, so you just pick the plate you want and slice.

★
Download from Creality Cloud — it makes a real difference.

Every download through Creality Cloud earns points that help keep my models free and my pages running. If you have an account, downloading from there is the best way to support the work at no cost to you.

Download on Creality Cloud
▤
Print & Fit Guide

The same guide attached to the model listings, hosted here so you can read it before you print — PDF · 4 pages · 160 KB

Open the Guide

Print Settings

Slice It Right

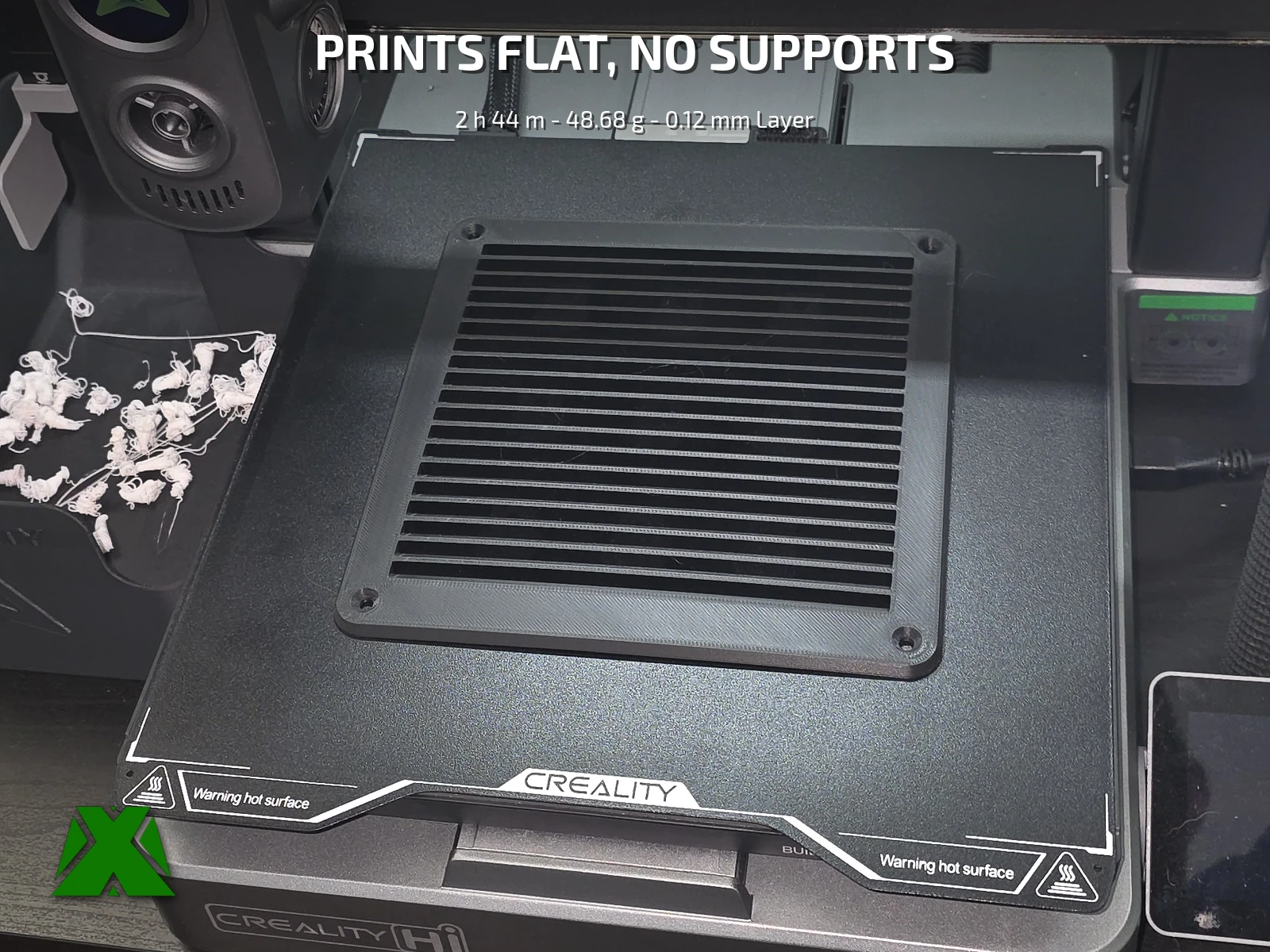

The panel prints face down as one flat piece, so nothing overhangs and no supports are generated — the louver angle is built to be self-supporting at this orientation. A 5 mm outer brim keeps the thin border flat on the plate over a two and three quarter hour print. PLA is fine indoors; PETG is the better choice if the vent will see sun or heat.

Supports
None
Material
PLA
Layer Height
0.12 mm
Infill
9% Gyroid
Nozzle
0.4 mm
Walls
3
Top / Bottom
5 / 3
Bed Adhesion
5 mm Outer Brim
Finished Size
175×175×4mm
With Screw Holes
48.68g · 2h 44m
Without
48.48g · 2h 39m

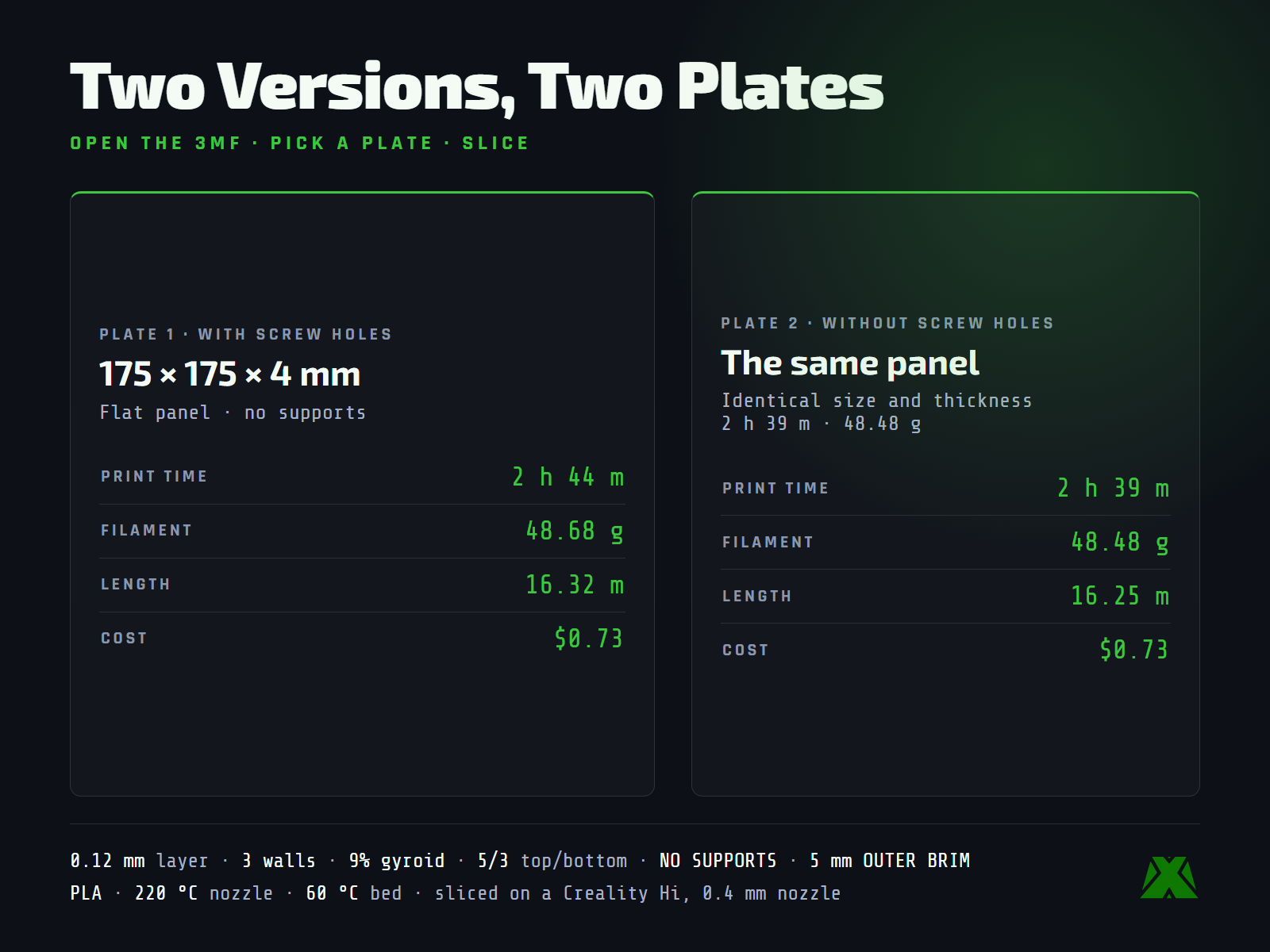

Slice data: two plates, one with screw holes at 2 h 44 m and 48.68 g, one without at 2 h 39 m and 48.48 g, both flat panels without supports

Fitting It

Two Versions, Your Choice of Mount

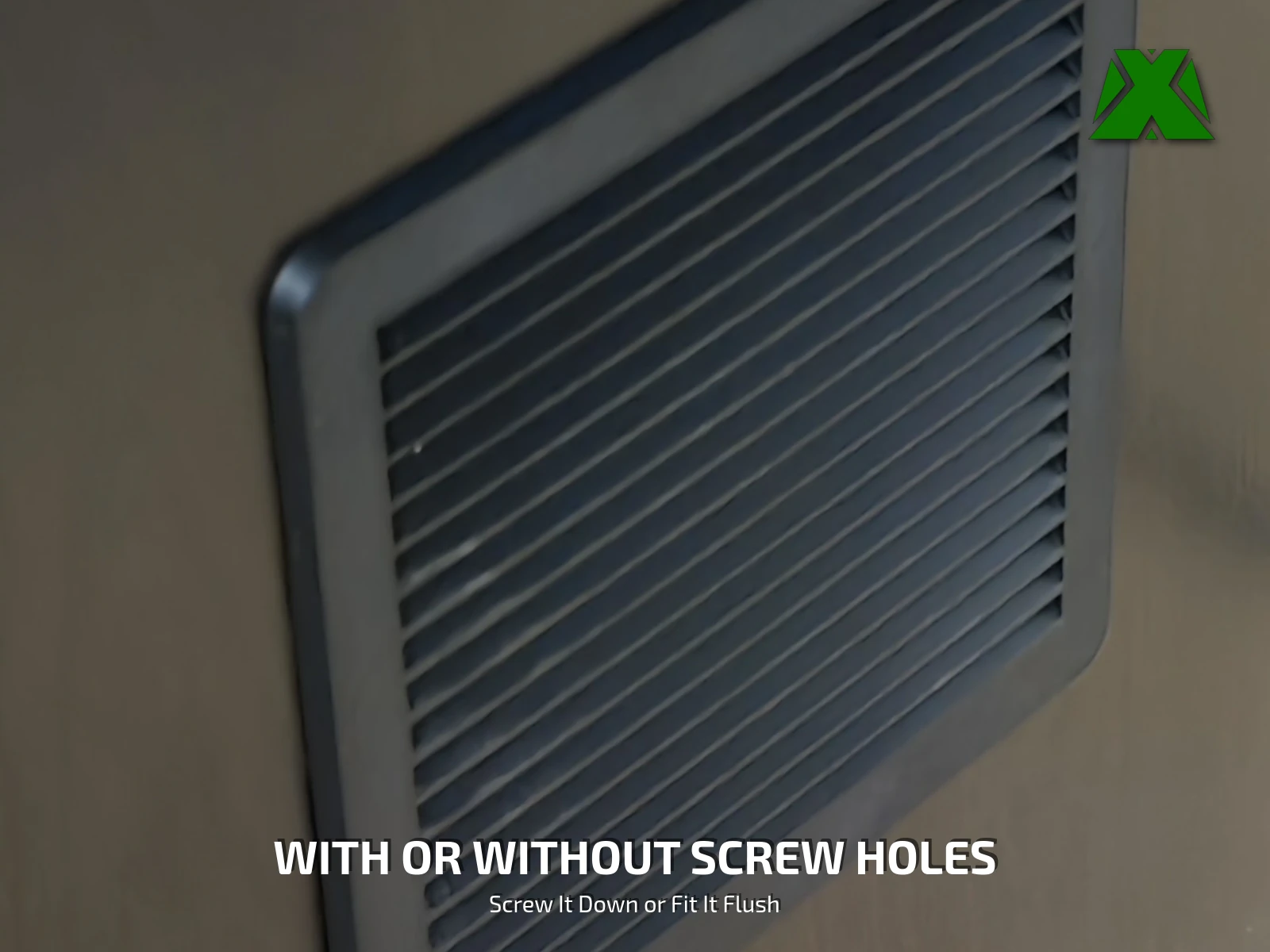

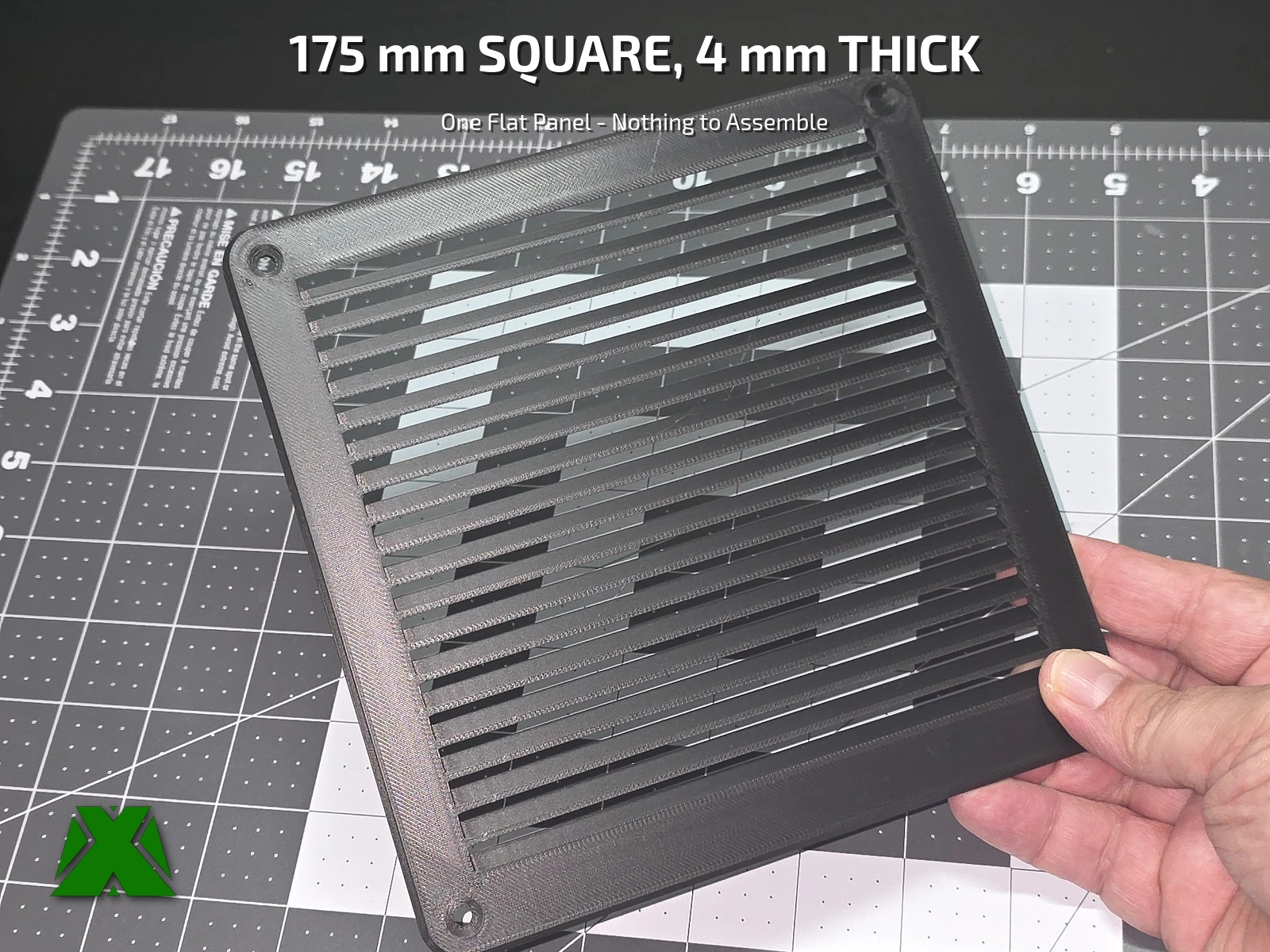

The screw-hole version has a countersunk hole in each corner, so a flat-head screw sits level with the face rather than standing proud of it. The plain version has an unbroken face for adhesive, a friction fit into the opening, or any mounting method of your own — it is the same panel in every other respect, identical in size and thickness.

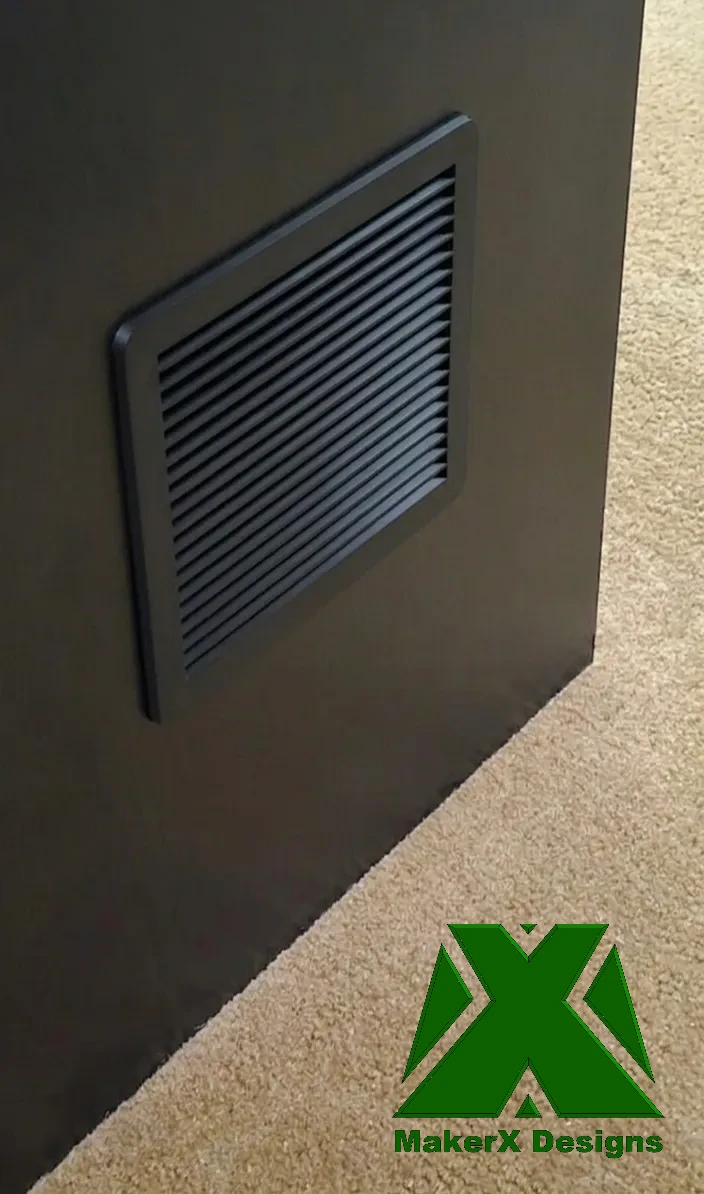

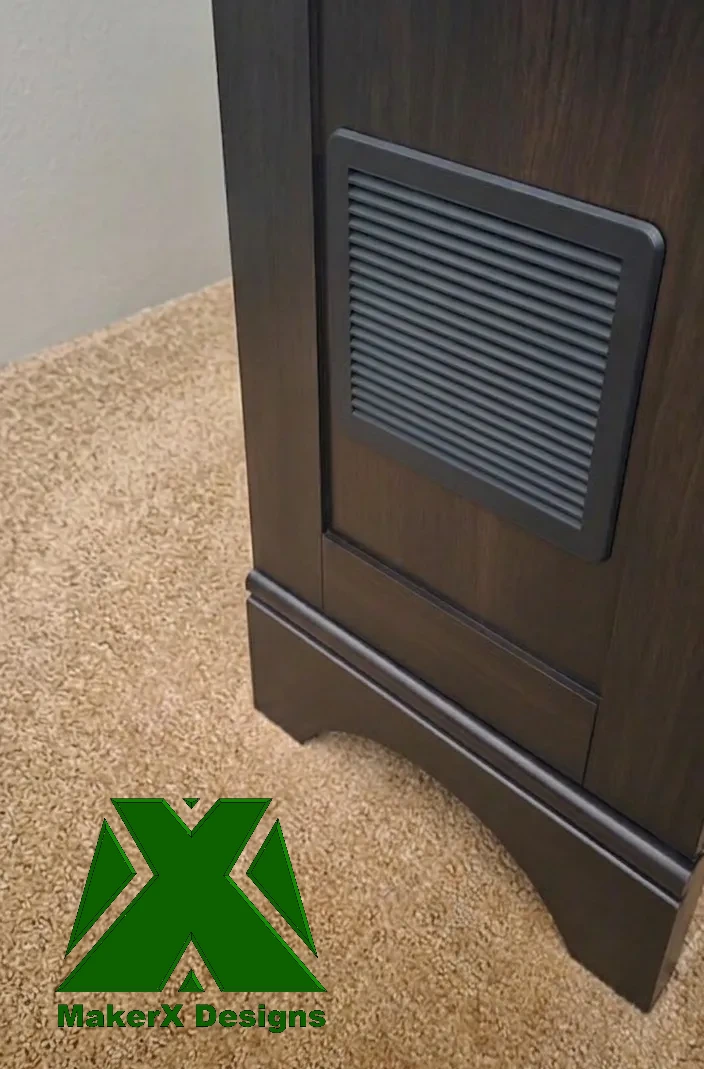

The panel is 175 mm square and covers an opening comfortably smaller than that, so measure your hole before you print. It was built to vent a desk fan tucked inside a cabinet — paired with the vertical laptop stand to keep the laptop hidden and cool — but it works over any cut hole in a wall, floor, cabinet, or piece of equipment. Need a different size to match your opening? Just reach out.

More models and tested slicer settings on my Creality Cloud profile.

View Profile

Released under CC BY-NC-ND 4.0 — free for personal use, credit appreciated, no commercial use or derivatives.
