Cauldron Jack-o-Lantern

A jack-o-lantern glows through its face. A cauldron lamp glows through its brew. This one does both at full size — a 166 mm pot with a face carved clean through the front, a lift-off lid, and a disc of domed bubbles resting in the mouth over a color-changing RGB puck light. Four parts, no hardware, nothing to glue.

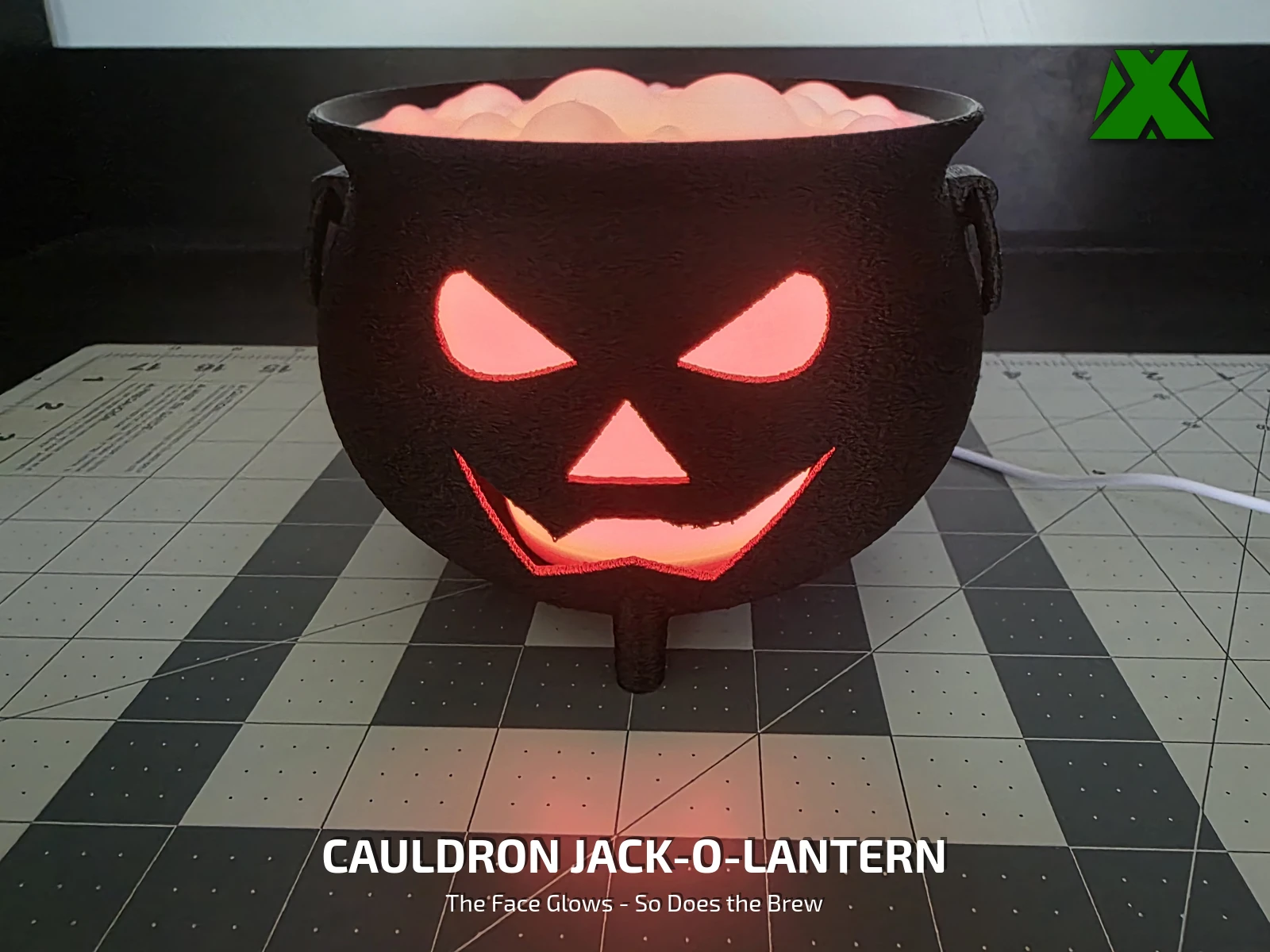

The finished cauldron lit red with the lid off, its carved face glowing and the bubbling brew glowing above the rim

Downloads

Get the Files

Four parts across three 3MF projects, because each one is sliced differently — the body and the lid share a plate-pair with tree supports, the diffuser cone is vase mode, and the bubbling brew disc runs at 0.08 mm to keep the domes smooth. The STLs are in there too.

★
Download from Creality Cloud — it makes a real difference.

Every download through Creality Cloud earns points that help keep my models free and my pages running. If you have an account, downloading from there is the best way to support the work at no cost to you.

Download on Creality Cloud

The 3MFs are the faster path — the body and lid project carries both plates, and the diffuser and brew disc each bring their own settings. A full print & use guide is attached to the Creality listing.

▤
Print & Use Guide

The same guide that ships with the model listings, hosted here so you can read it before you print — PDF · 5 pages · 980 KB

Open the Guide

What's Included

Four Parts, One Puck Light

Nothing glues and nothing screws. The puck light sits in a recess in the floor of the pot with its lead out through the hole beside it, the diffuser cone stands over it, the brew disc drops into the mouth, and the lid goes on or stays off. Add an RGB puck light — that is the only thing you need that does not come off the printer.

Cauldron Body

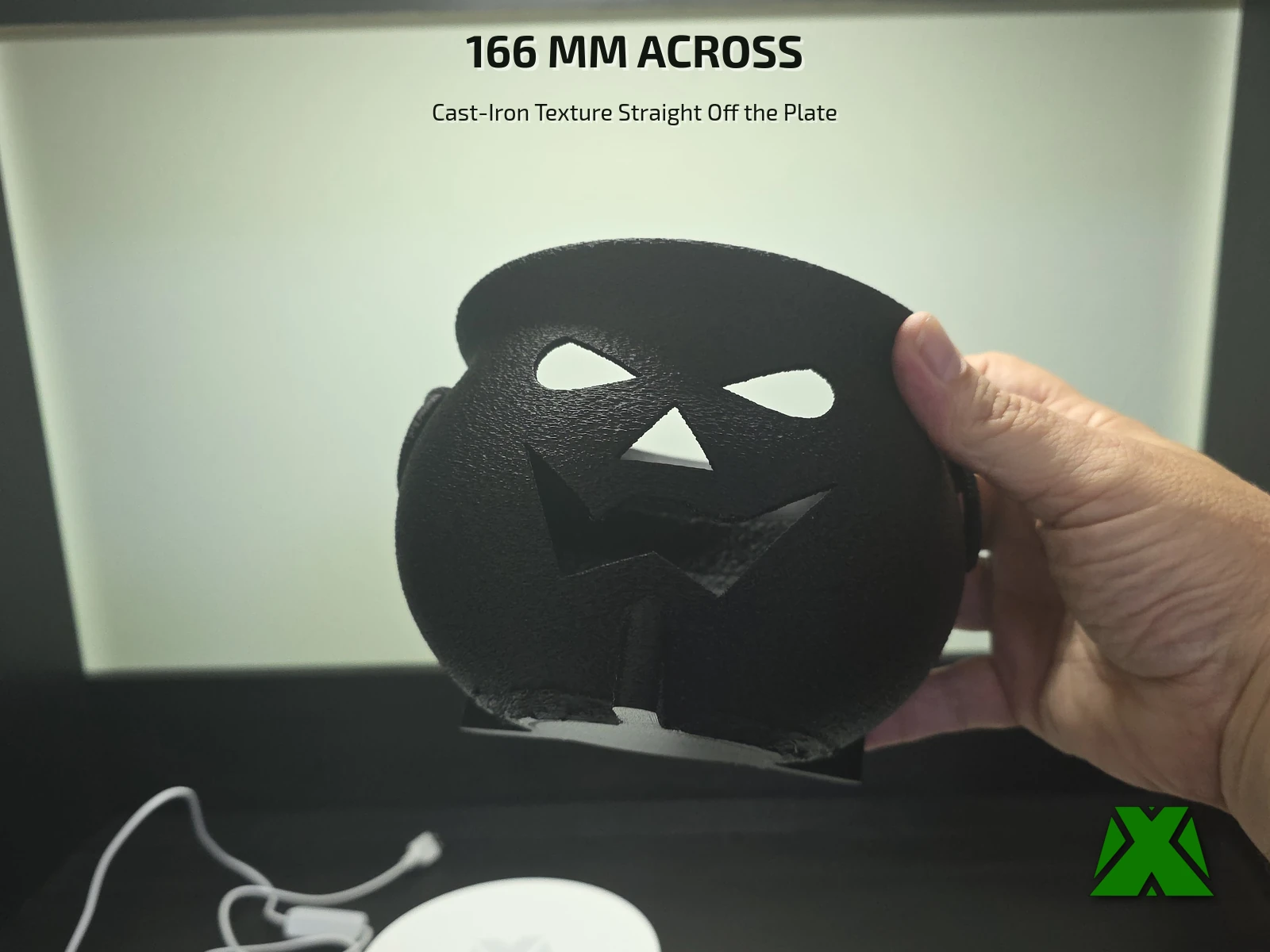

166 × 158 × 111 mm, handles included. The carved face, the pot and the cord route in one part. 14 h 16 m, 217.04 g. Tree supports.
Lift-Off Lid
134.5 mm across, 33 mm tall. Seats about halfway into the rim, so the pot closes to roughly 128.5 mm tall. 6 h 25 m, 68.26 g. Tree supports.
Vase-Mode Cone
123 mm across the wide end, 97 mm tall, tapering to 77 mm at the narrow end that drops over the puck. A single-wall spiral that carries the light up to the brew instead of leaving a hot spot. 1 h 18 m, 22.37 g.
Bubbling Brew
134.5 mm across, 13 mm thick. A disc of domed bubbles that sits in the mouth and glows from underneath. Printed at 0.08 mm so the domes stay smooth. 2 h 19 m, 27.59 g.

Print Settings

Slice It Right

Three 3MF projects, because the four parts are sliced three different ways, and that is the whole trick to how this looks lit. The diffuser is not optional — without it the puck shows as a bright spot in the bottom of the pot instead of an even glow up through the brew.

The body and lid share one project with two plates, at 0.12 mm with 3 walls, 15% gyroid and tree supports on a 5 mm brim — 0.25 mm support Z gap and 3 interface layers, which is what lets the face supports lift out as one sheet instead of taking the teeth with them. The cone is vase mode: one wall, 0.2 mm layers, no supports, its own plate. The brew disc drops to 0.08 mm with 2 walls, lightning infill and a concentric top, no supports — the fine layers are what keep the bubble domes from stepping.

The cone goes in upside down from the way it prints: it prints wide-face down with the MakerX mark on the plate, and in the pot that face is up with the narrow end over the puck.

Assembled
166 mm Across, ~128.5 mm Tall
Total Print
24 h 18 m · 335.26 g
Cost
About $10.06
Supports
Tree, Body & Lid Only
Nozzle
0.4 mm
Material
PLA · 220 °C / 60 °C
Light Source
RGB Puck Light (not included)
Hardware
None

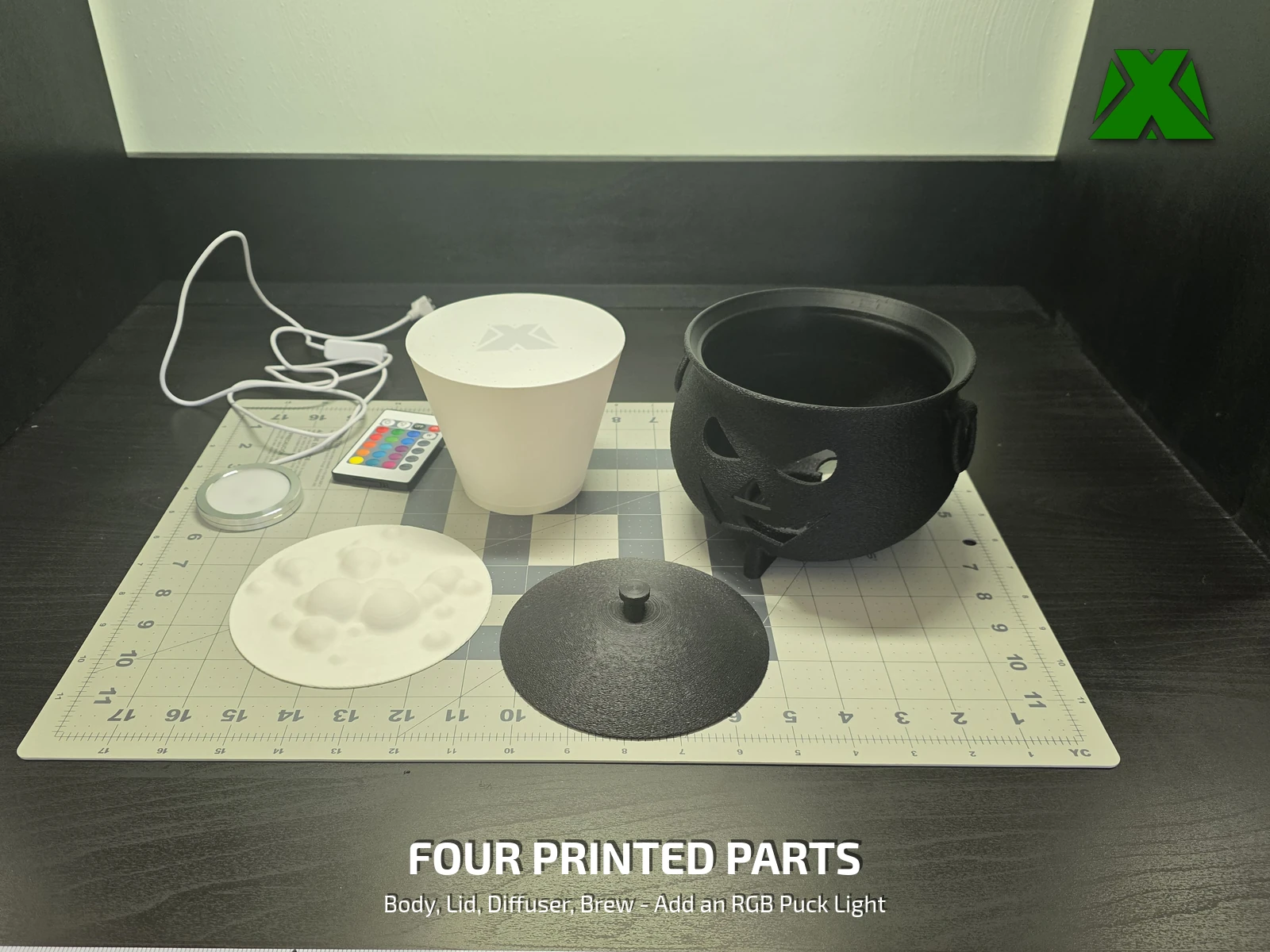

The four printed parts laid out on a cutting mat beside an RGB puck light, its remote and its USB lead

More models and tested slicer settings on my Creality Cloud profile.

View Profile

Released under CC BY-NC-ND 4.0 — free for personal use, credit appreciated, no commercial use or derivatives.
