Filament Storage In-Stack Labels

A top label names the column. A side label names the tray. Neither helps when one column holds two materials — and it usually does, because a column takes six spools and almost nobody has six of the same thing. This arch sits in the stack at the boundary and marks it. No adhesive, no clips, nothing to break when you rotate stock.

A printed in-stack label lying on a cutting mat, arch upward, with PLA raised on the front face

Downloads

Get the Files

One project file holds all five plates — open it, pick the legend you need and slice. The five plates are also split out one per file, and the STLs are in there if you would rather bring your own profile.

★
Download from Creality Cloud — it makes a real difference.

Every download through Creality Cloud earns points that help keep my models free and my pages running. If you have an account, downloading from there is the best way to support the work at no cost to you.

Download on Creality Cloud

The 3MF is the faster path — open it, pick a plate, and slice. A full print & use guide is attached to the Creality listing.

What's Included

Five Legends, One Project

Every plate is the same part with different lettering, so they all print the same way. The name is what the label says — all five plates are sliced for PLA, so print them in whatever you like. Times and weights are read off the slicer, not estimated.

The PLA plate in the slicer's plate list
PLA
The everyday one. 6 h 20 m, 200.01 g.
The PET-G plate in the slicer's plate list
PET-G
Five characters, so a hair slower. 6 h 26 m, 201.88 g.
The ASA plate in the slicer's plate list
ASA
For the column that turns over to ASA. 6 h 23 m, 201.77 g.
The TPU plate in the slicer's plate list
TPU
For the flexible spools you keep forgetting. 6 h 23 m, 201.76 g.
The Blank plate in the slicer's plate list — no lettering, so it is a single-filament print
Blank
No text — write it yourself with a paint pen. Single filament, so it is the quick one and needs no CFS or AMS at all: 3 h 17 m, 121.99 g.

Print Settings

Slice It Right

These are the settings the reference prints were made with. The 3MF carries the full profile — open it in Creality Print or any slicer that reads 3MF projects and it is ready to go. The four lettered plates are set up for two filaments, so printing them in two colors needs a CFS, an AMS or another multi-material unit; the blank plate is a single filament and needs none of that. Starting from an STL instead? An STL carries no color — select the part and use Paint in your slicer, or it slices in a single color, which is why the text can look like it disappeared.

This one is not printed face down. If you have printed the side, top or insert labels, ignore that habit here — those go lettered-face-down for purge economy, and this one stands the way the 3MF has it, which is the orientation that was tested.

Supports
None
Orientation
As Laid Out in the 3MF
Layer Height
0.20 mm
Infill
9% Gyroid
Nozzle
0.4 mm
Walls
2
Bed Adhesion
Auto Brim, 5 mm
Each Label
240×205×52mm · 121.92g part

A lettered plate slices at about 200 g, but only 121.92 g of that is the label — the rest is purge and wipe tower across ninety filament changes. That is the whole reason the blank plate exists: it is the same object in one filament at 121.99 g.

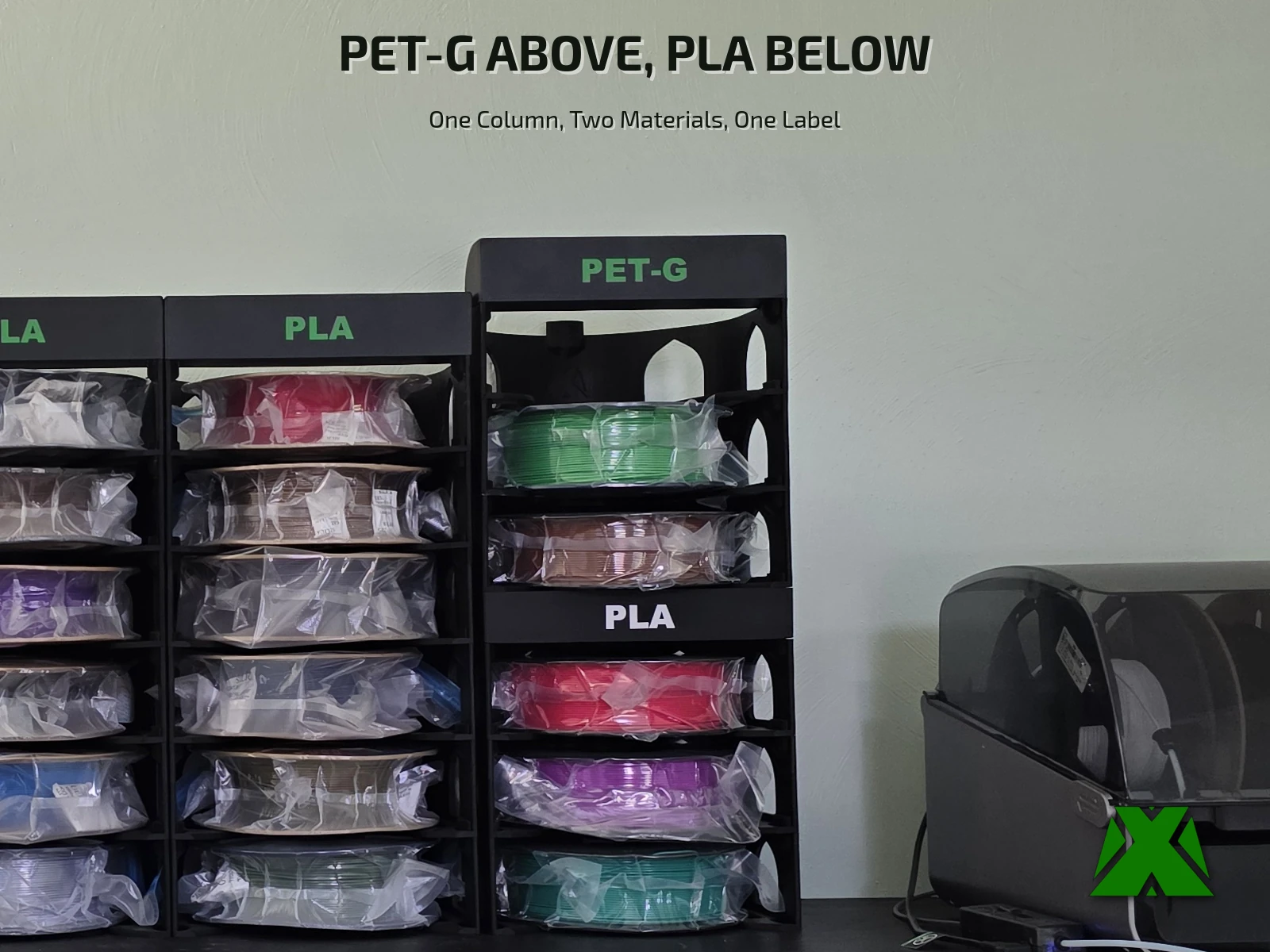

A filament column capped with a green PET-G bar, two PET-G spools below it, then a white PLA in-stack label marking where the PLA begins

More models and tested slicer settings on my Creality Cloud profile.

View Profile

Released under CC BY-NC-ND 4.0 — free for personal use, credit appreciated, no commercial use or derivatives.
